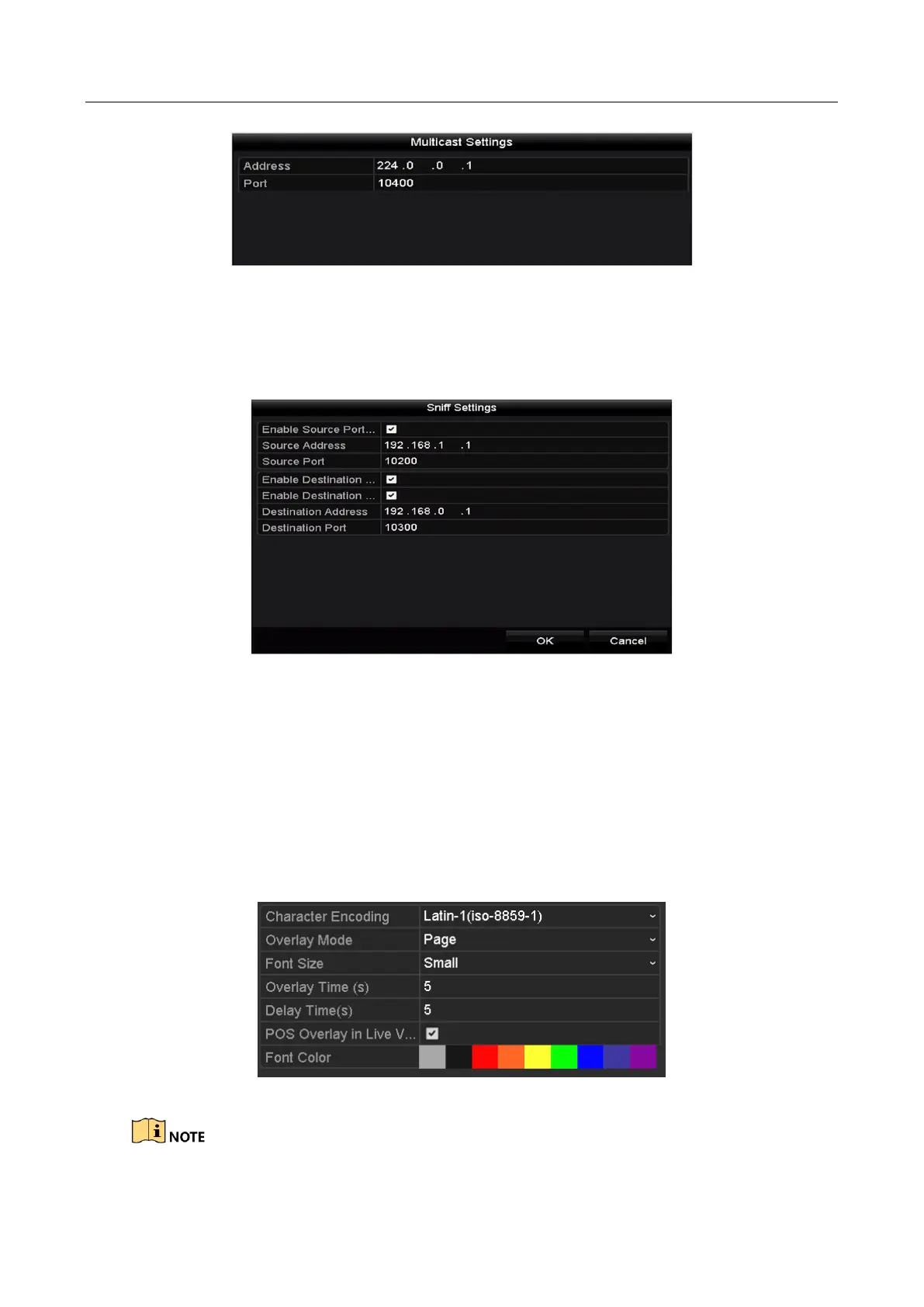

Figure 9-10 Multicast Settings
 Sniff Connection
Connect the DVR and the POS machine via Sniff. Configure the source address and
destination address settings.
Figure 9-11 Sniff Settings
Step 7 Set other parameters of characters overly.
4) Select the character encoding format from the drop-down list.
5) Select the overlay mode of the characters to display in scrolling or page mode.
6) Select the font size to small, medium or large.
7) Set the overlay time of the characters. The value ranges from 5 to 3600 sec.
8) Set the delay time of the characters. The value ranges from 5 to 3600 sec.
9) (Optional) Check the checkbox to enable the POS Overlay in Live View.
10) Select the font color for the characters.
Figure 9-12 Overlay Character Settings

HIKVISION DS-7216HQHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 3840 x 2160, 2560 x 1440
Audio input	RCA
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	25 W
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
