HIKVISION DS-7216HQHI-K1 User Manual

Digital Video Recorder User Manual
189
1) Back to enter the cloud storage interface, and select the camera you have set in the
recording schedule interface.
2) Select the upload type in the Upload Type text filed.
3) Check the Enable Event Upload checkbox.
4) Click Apply to finish the settings.

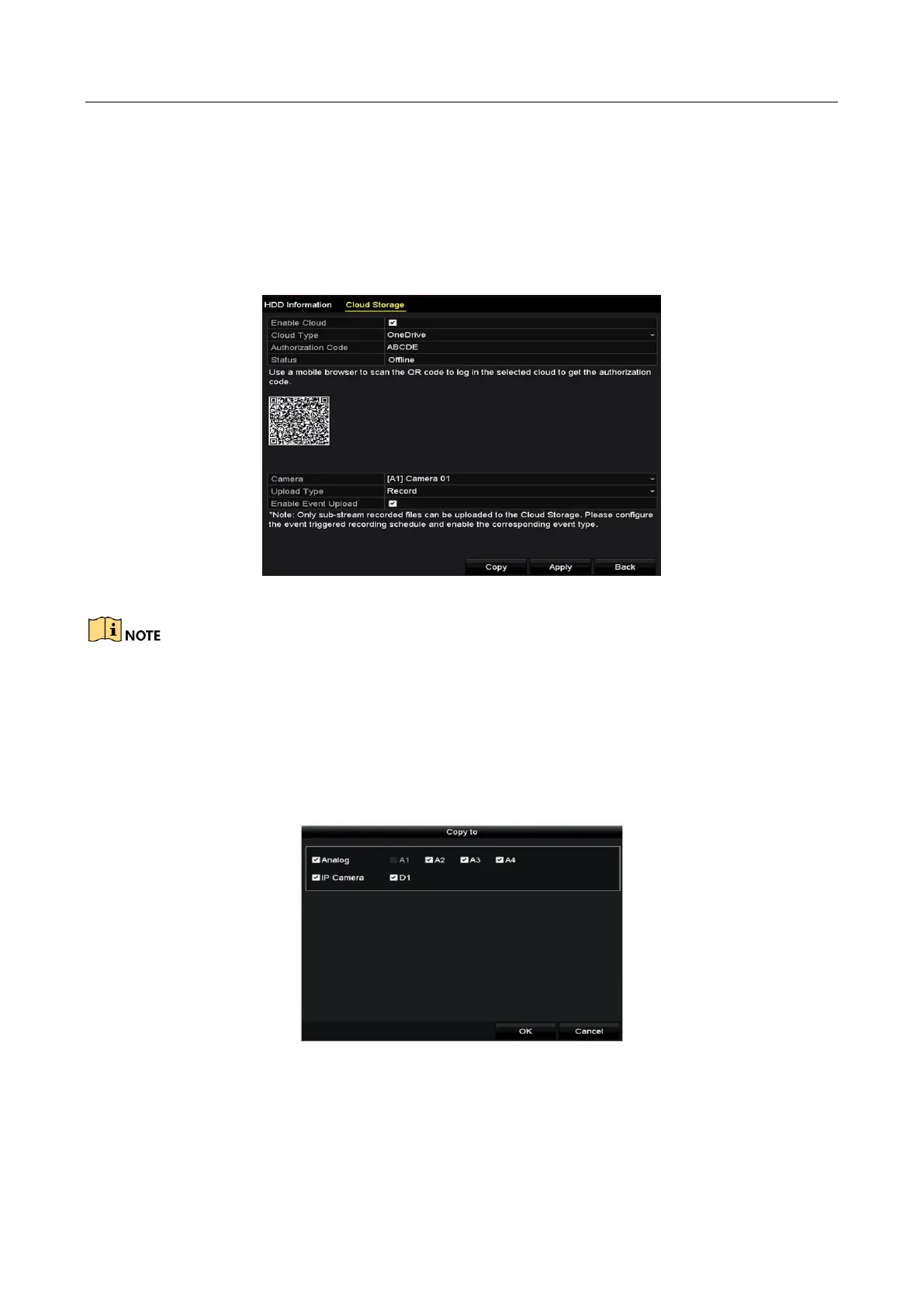

Figure 13-20 Upload to Cloud Storage Interface

Only the sub-stream recorded files can be uploaded to the Cloud Storage.

Please configure the event triggered recording schedule and enable the corresponding
event type.
Step 9 (Optional) You can click the Copy button to copy the cloud storage settings to other
cameras. You can also click the checkbox of Analog/IP Camera to select all cameras.
Click OK button to back to the cloud storage interface and click Apply to finish the settings.
Figure 13-21 Copy to Interface

HIKVISION DS-7216HQHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 3840 x 2160, 2560 x 1440
Audio input	RCA
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	25 W
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
