User Manual of Digital Video Recorder
79

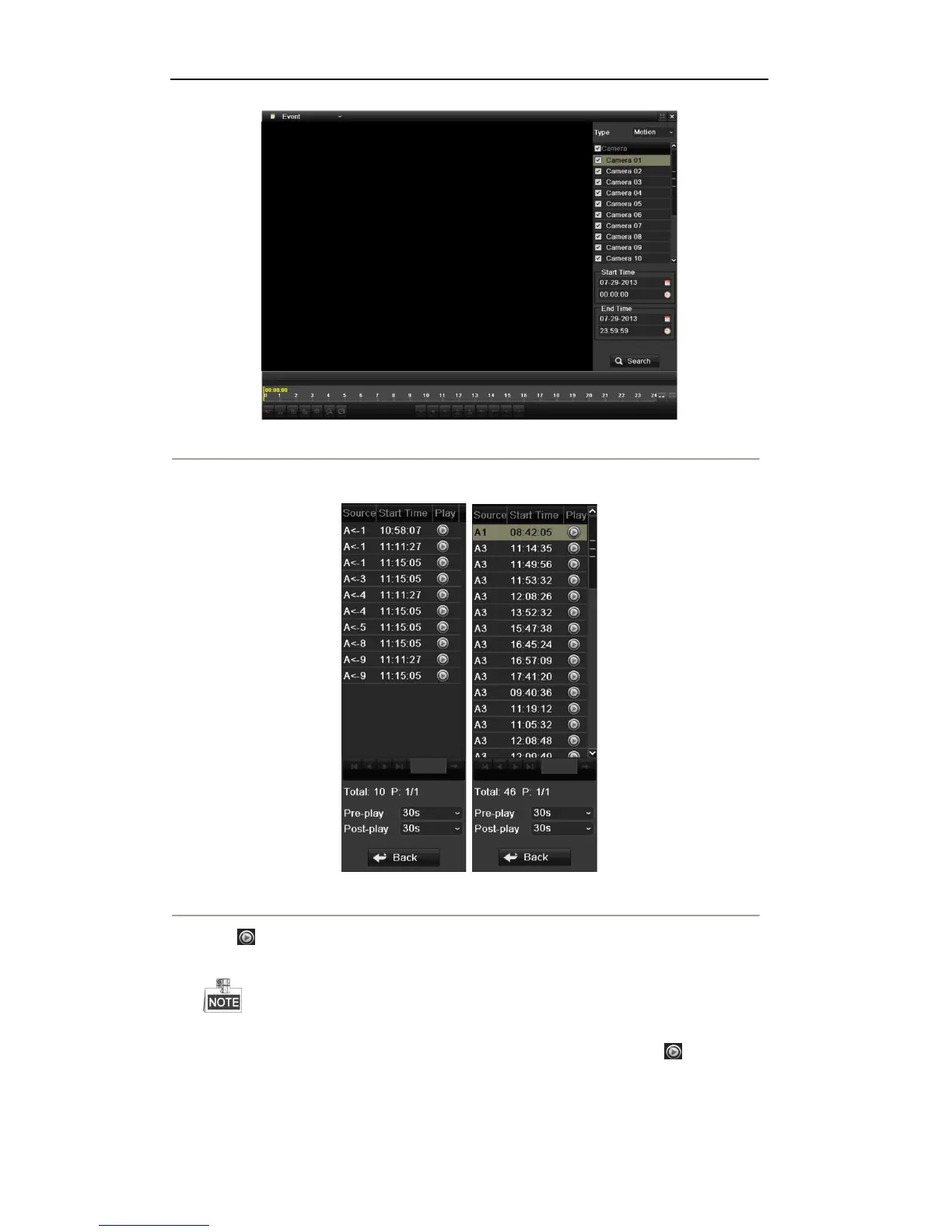

Figure 6. 9 Motion Search Interface
4. Click Search button to get the search result information. You may refer to the right-side bar for the result.
Figure 6. 10 Search Result Bar (Alarm In and Motion)
5. Click button to play back the file.
You can click the Back button to back to the search interface.
Pre-play and post-play can be configured.
6. (Optional) If multiple channels are triggered recording by the alarm input, clicking the button will
pop up a synchoronouse playback channel selection window. Select channel(s) you want to play and click
the OK button.
