Digital Video Recorder Quick Start Guide

Step 4 (Optional) Repeat the steps above to install other HDDs.

Step 5 Close the front panel and lock it with key.

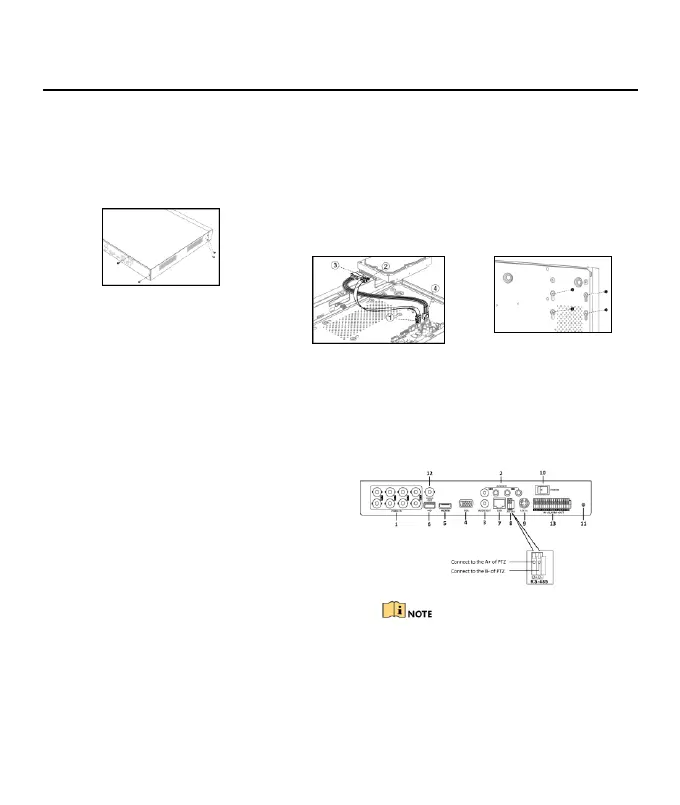

2.2.3 Fix-on-Bottom Installation

Fix-on-bottom installation is applicable when you need to install and fix the HDD on the device bottom.

Step 1 Remove the cover from device

by unfastening the screws on

panels.

Step 2 Connect the data cable and

power cable.

1) Connect one end of data cable to

the device motherboard.

2) Connect the other end of data

cable to HDD.

3) Connect one end of power cable

to HDD.

4) Connect the other end of power

cable to the device motherboard.

Step 3 Set the device up,

match HDD screw

threads with the

reserved holes on the

device bottom, and fix

HDD with screws.

Step 4 (Optional) Repeat the steps above to install other HDDs.

Step 5 Reinstall the device cover and fasten screws.

2.3 RS-485 and Controller Connection

To connect PTZ to the DVR:

Step 1 Disconnect pluggable block from the

RS-485 terminal block.

Step 2 Press and hold the orange part of the

pluggable block, insert signal cables

into slots, and release the orange

part. Ensure signal cables are in tight.

Step 3 Connect A+ on PTZ to D+ on terminal

block and B- on controller to D- on

terminal block. Fasten stop screws.

Step 4 Connect pluggable block back into

terminal block.

Typical Connection:

Figure 2-1 Controller Connection A

Make sure both the controller and DVR are grounded.
