HIKVISION DS-7316HQHI-K4 Quick Start Guide

Digital Video Recorder Quick Start Guide
8
3.3 Using the Unlock Pattern for Login
Purpose
For the Admin user, you can configure the unlock pattern for device login.
After the device is activated, you can configure the device unlock pattern.
Step 1 Use the mouse to draw a pattern among the 9
dots on the screen. Release the mouse when the
pattern is done.

Connect at least 4 dots to draw the pattern.

Each dot can be connected for once only.
Step 2 Draw the same pattern again to confirm it. When
the two patterns match, the pattern is configured
successfully.
Step 3 You can use the configured unlock pattern for
future login.

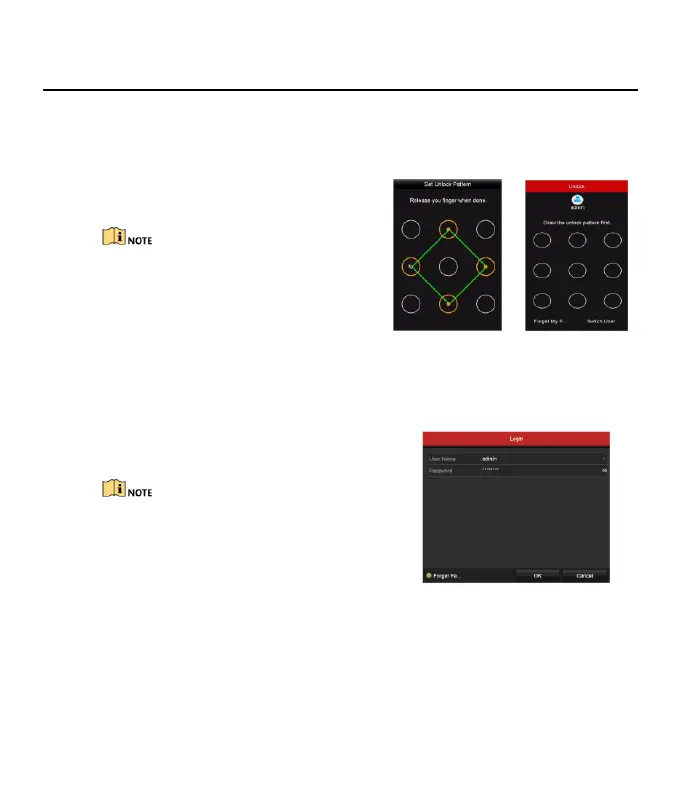

Figure 3-2 Draw the Pattern
3.4 User Login
Purpose
If DVR has logged out, you must log in to the device before operating the menu and other functions.
Step 1 Select the User Name in the drop-down list.
Step 2 Enter the Password.
Step 3 Click OK to log in.
For the admin, if you have entered the wrong password for 7
times, the account will be locked for 60 seconds. For the
operator, if you have entered the wrong password for 5
times, the account will be locked for 60 seconds.
Figure 3-3 Login

HIKVISION DS-7316HQHI-K4 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	8000 GB
Number of HDDs supported	4
Power requirements	100 - 240 VAC
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
