HIKVISION DS-7316HUHI-K4 Quick Start Guide

Digital Video Recorder Quick Start Guide
9
3.5 User Logout, Shutdown and Reboot
Purpose
You can log out of the system, shut down, or reboot the device on your demands.
Step 1 Go to Menu > Shutdown.
Step 2 Click Logout, Shutdown, or Reboot.
After you have logged out of the system, menu operation
on the screen is invalid. It is required to enter a user
name and password to unlock the system.

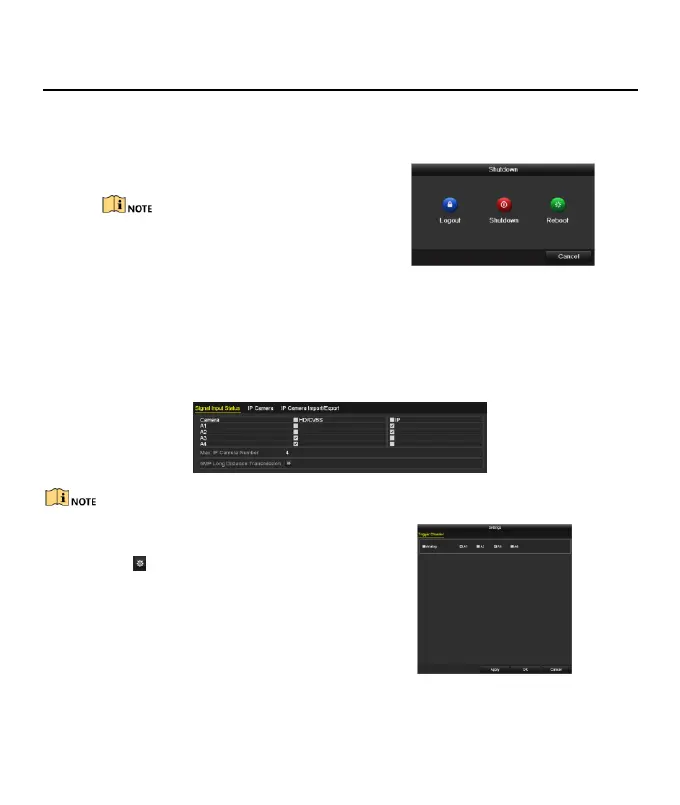

Figure 3-4 Logout
3.6 Configuring Signal Input
Purpose
For some models, you can configure the analog and IP signal input types and 5 MP long distance transmission.
For other models, the analog signal inputs (Turbo HD, AHD, HDCVI, CVBS) and IP signal input can be recognized
and connected automatically.
Step 1 Go to Menu > Camera > Signal Input Status.
Figure 3-5 Signal Input Status
The Signal Input Status interface differs with different models.
Step 2 Check the checkbox to select different
signal input types: HD/CVBS and IP.
Step 3 Click to enter the 5 MP Long Distance
Transmission Settings interface.
Step 4 Check the channel(s) to enable 5 MP long
distance transmission.
Step 5 Click Apply to save the settings and OK to
return to the Signal Input Status interface.
Step 6 Click Apply on the Signal Input Status
interface.
Figure 3-6 5 MP Long Distance Transmission Settings

HIKVISION DS-7316HUHI-K4 Specifications

General

Bit rate	10000 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio input channels	4.0 channels
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, H.265+
Number of simultaneously playbacked channels	16 channels
Audio input	RCA
RS-232 ports	1
BNC input ports	16
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
Power consumption (typical)	65 W
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP
HDD interface	eSATA
Maximum HDD capacity	10000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
