HIKVISION DS-7316HUHI-K4 Quick Start Guide

Digital Video Recorder Quick Start Guide
10
3.7 Adding IP Cameras
Purpose
Before you can get live video or record the video files, you should add the network cameras to the connection
list of the device.
Before you start
Ensure the network connection is valid and correct, and the IP camera to add has already been activated. Please
refer to the User Manual for activating the inactive IP camera.
Step 1 Go to Menu > Camera > IP Camera.
Step 2 Select the IP camera from the list and
click to add the camera (with the
same admin password of the DVR’s).
Step 3 (Optional) Check Enable H.265 (For
Initial Access) for the connected IP
camera supporting H.265. Then the IP
camera will be encoded with H.265.

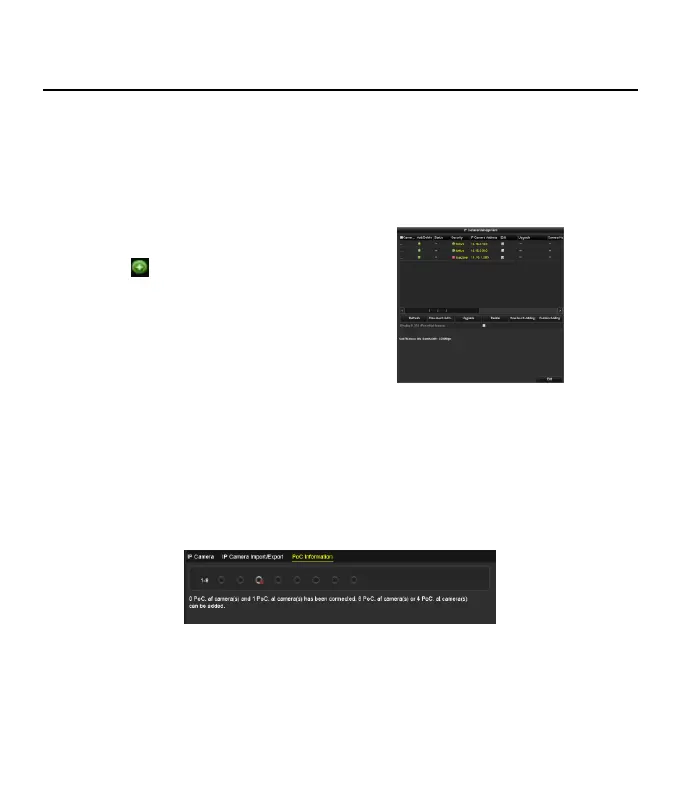

Figure 3-7 Add IP Camera
3.8 Connecting PoC Cameras
Purpose
Some models support PoC (Power over Coaxitron) cameras connection. DVR will detect the connected PoC
cameras automatically, manage the power consumption via the coaxial communication, and provide power to
the cameras via coaxitron.
Before you start
Connect the PoC camera to the DVR.
Step 1 Go to Menu > Camera > PoC Information.
Figure 3-8 PoC Information
Step 2 Check the status of connected PoC camera.
 If the power consumption of
the DVR is lower than that of
AF camera, when AF or AT
camera is connected, there is
no video and “Insufficient
 If the power consumption of the
DVR is higher than that of the AF
camera and lower than that of
the AT camera, when AF camera
is connected, it is powered on
 If the power consumption of
the DVR is higher than that of
the AT camera, when AF or AT
camera is connected, it is
powered on normally.

HIKVISION DS-7316HUHI-K4 Specifications

General

Bit rate	10000 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio input channels	4.0 channels
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, H.265+
Number of simultaneously playbacked channels	16 channels
Audio input	RCA
RS-232 ports	1
BNC input ports	16
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
Power consumption (typical)	65 W
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP
HDD interface	eSATA
Maximum HDD capacity	10000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
