HIKVISION DS-7316HUHI-K4 Quick Start Guide

Digital Video Recorder Quick Start Guide
6
Step 4 (Optional) Repeat the steps above to install other HDDs.
Step 5 Close the front panel and lock it with key.

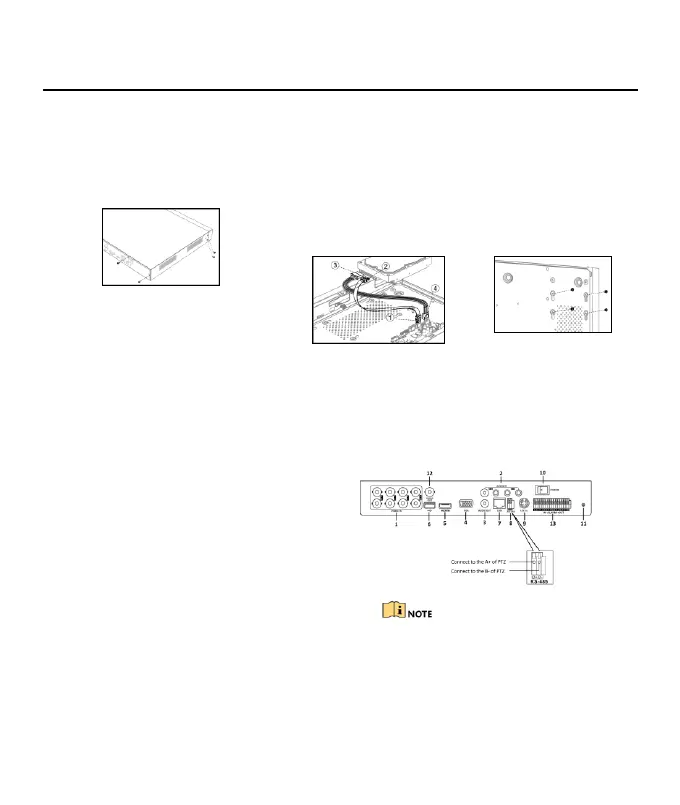

2.2.3 Fix-on-Bottom Installation
Fix-on-bottom installation is applicable when you need to install and fix the HDD on the device bottom.
Step 1 Remove the cover from device
by unfastening the screws on
panels.
Step 2 Connect the data cable and
power cable.
1) Connect one end of data cable to
the device motherboard.
2) Connect the other end of data
cable to HDD.
3) Connect one end of power cable
to HDD.
4) Connect the other end of power
cable to the device motherboard.
Step 3 Set the device up,
match HDD screw
threads with the
reserved holes on the
device bottom, and fix
HDD with screws.
Step 4 (Optional) Repeat the steps above to install other HDDs.
Step 5 Reinstall the device cover and fasten screws.
2.3 RS-485 and Controller Connection
To connect PTZ to the DVR:
Step 1 Disconnect pluggable block from the
RS-485 terminal block.
Step 2 Press and hold the orange part of the
pluggable block, insert signal cables
into slots, and release the orange
part. Ensure signal cables are in tight.
Step 3 Connect A+ on PTZ to D+ on terminal
block and B- on controller to D- on
terminal block. Fasten stop screws.
Step 4 Connect pluggable block back into
terminal block.
Typical Connection:
Figure 2-1 Controller Connection A
Make sure both the controller and DVR are grounded.

HIKVISION DS-7316HUHI-K4 Specifications

General

Bit rate	10000 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio input channels	4.0 channels
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, H.265+
Number of simultaneously playbacked channels	16 channels
Audio input	RCA
RS-232 ports	1
BNC input ports	16
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
Power consumption (typical)	65 W
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP
HDD interface	eSATA
Maximum HDD capacity	10000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
