HIKVISION DS-7316HUHI-K4 Quick Start Guide

Digital Video Recorder Quick Start Guide
8
3.3 Using the Unlock Pattern for Login
Purpose
For the Admin user, you can configure the unlock pattern for device login.
After the device is activated, you can configure the device unlock pattern.
Step 1 Use the mouse to draw a pattern among the 9
dots on the screen. Release the mouse when the
pattern is done.

Connect at least 4 dots to draw the pattern.

Each dot can be connected for once only.
Step 2 Draw the same pattern again to confirm it. When
the two patterns match, the pattern is configured
successfully.
Step 3 You can use the configured unlock pattern for
future login.

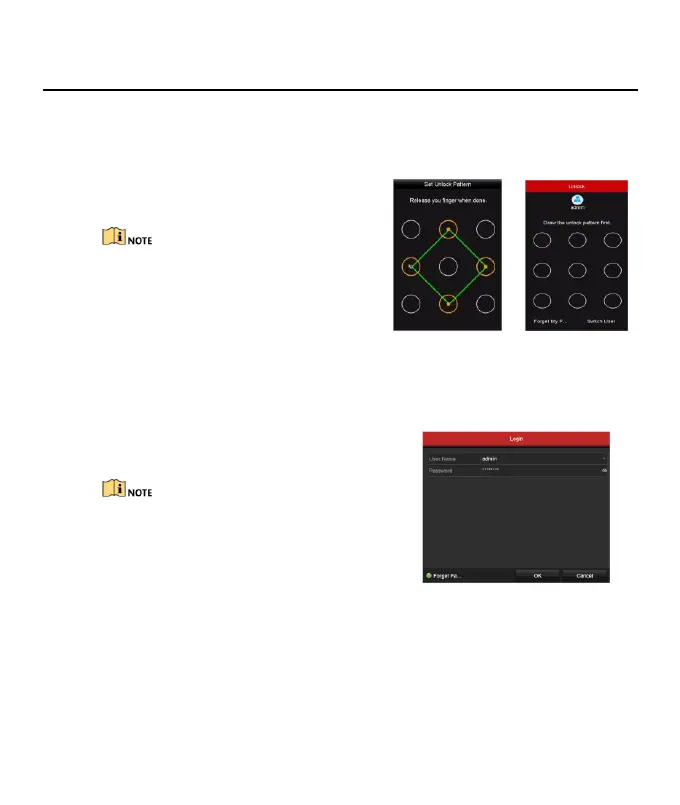

Figure 3-2 Draw the Pattern
3.4 User Login
Purpose
If DVR has logged out, you must log in to the device before operating the menu and other functions.
Step 1 Select the User Name in the drop-down list.
Step 2 Enter the Password.
Step 3 Click OK to log in.
For the admin, if you have entered the wrong password for 7
times, the account will be locked for 60 seconds. For the
operator, if you have entered the wrong password for 5
times, the account will be locked for 60 seconds.
Figure 3-3 Login

HIKVISION DS-7316HUHI-K4 Specifications

General

Bit rate	10000 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio input channels	4.0 channels
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, H.265+
Number of simultaneously playbacked channels	16 channels
Audio input	RCA
RS-232 ports	1
BNC input ports	16
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
Power consumption (typical)	65 W
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP
HDD interface	eSATA
Maximum HDD capacity	10000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
