HIKVISION DS-7316HUHI-K4 Quick Start Guide

Digital Video Recorder Quick Start Guide
5

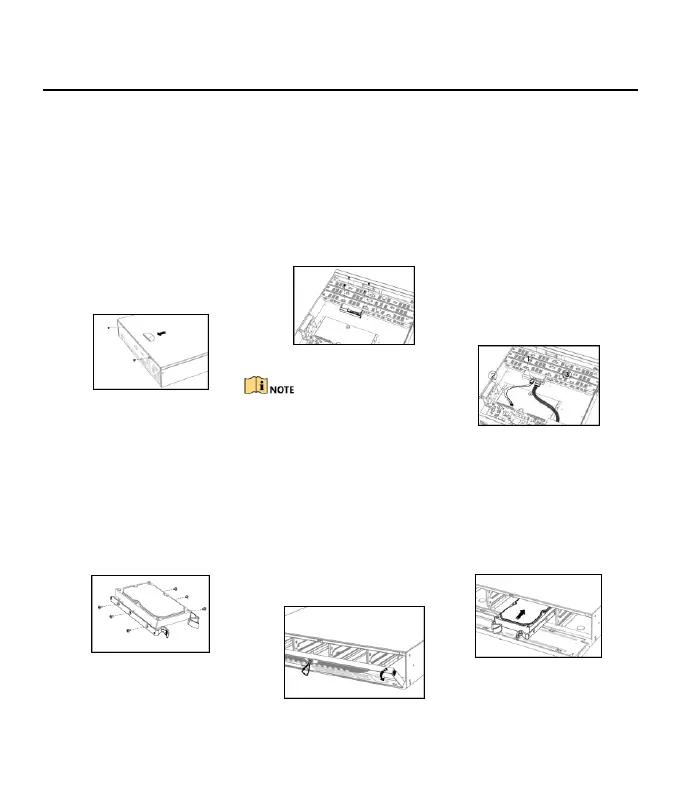

2.2 HDD Installation
Before you start
Before installing a hard disk drive (HDD), please make sure the power is disconnected from the device. A factory
recommended HDD should be used for the installation.
Tools Required: Cross screwdriver.
2.2.1 Bracket Installation
Bracket installation is applicable when you need to remove the cover of the device and install the HDD to the
internal bracket.
Step 1 Remove the cover from
device by unfastening the
screws on the back and
pushing the cover
backwards.
Step 2 Fix the HDD on the bracket
with screws.
To install the HDD on the bracket
of lower layer, uninstall the
bracket of upper layer first.
Step 3 Connect the data cable and
power cable.
1) Connect one end of data cable to
the device motherboard.
2) Connect the other end of data
cable to HDD.
3) Connect power cable to HDD.
Step 4 (Optional) Repeat the steps above to install other HDDs.
Step 5 Reinstall the device cover and fasten screws.
2.2.2 Front Panel Plug-Pull Installation
Front panel plug-pull installation is applicable when you need to open the device front panel with key and install
the HDD.
Step 1 Fix mounting ears to HDD
with screws.
Step 2 Unlock the front panel with
the attached key, and press
the buttons on both sides of
the front panel to open it.
Step 3 Insert the HDD until it is
fixed firmly.

HIKVISION DS-7316HUHI-K4 Specifications

General

Bit rate	10000 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio input channels	4.0 channels
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, H.265+
Number of simultaneously playbacked channels	16 channels
Audio input	RCA
RS-232 ports	1
BNC input ports	16
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
Power consumption (typical)	65 W
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP
HDD interface	eSATA
Maximum HDD capacity	10000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
