HIKVISION DS-7324HGHI-SH User Manual

163
User Manual of Digital Video Recorder
9.4.3 Checking Network Status
Purpose:
You can also check the network status and quick set the network parameters in this interface.
Steps:
Click Status on the right bottom of the page.

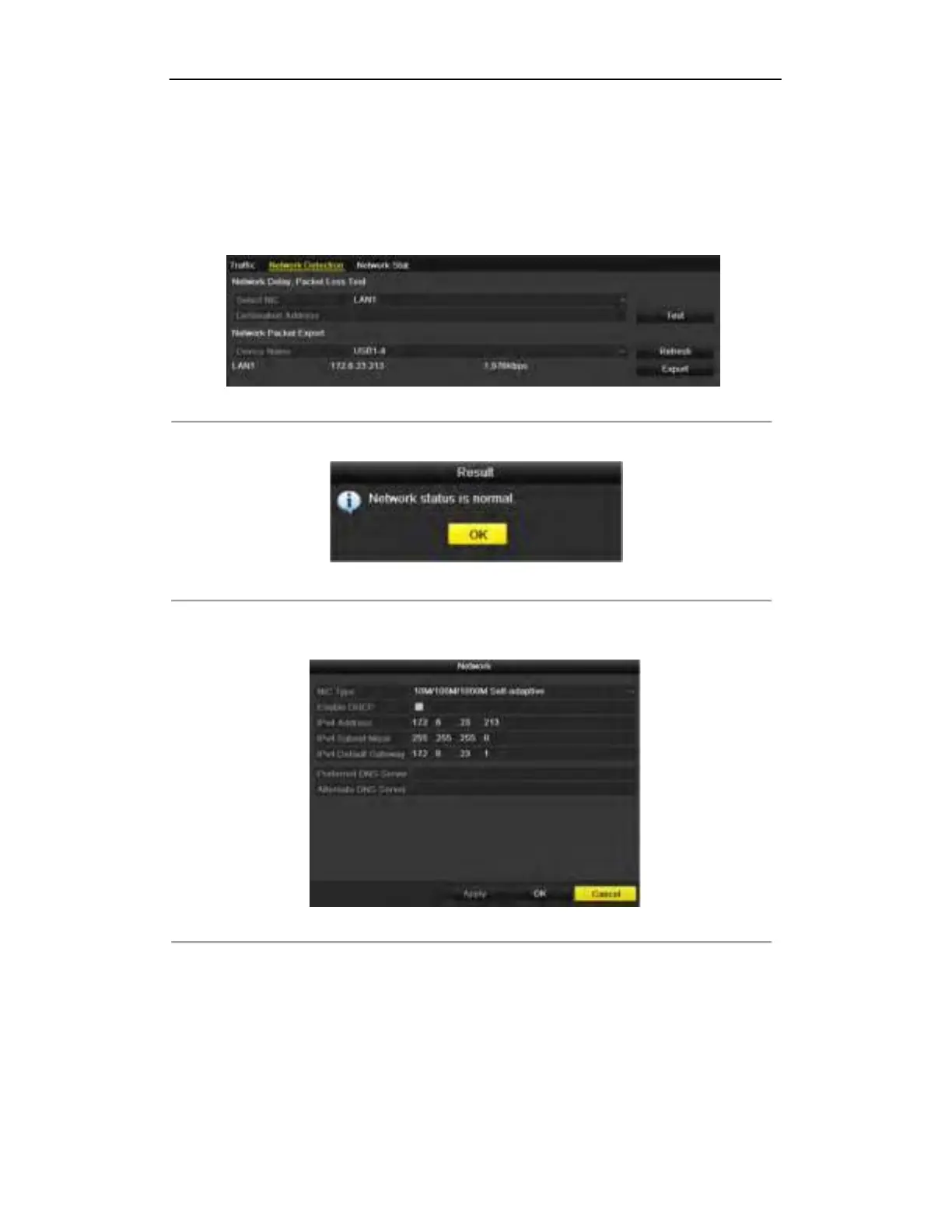

Figure 9. 31 Checking Network Status
If the network is normal the following message box pops out.
Figure 9. 32 Network Status Checking Result
If the message box pops out with other information instead of this one, you can click Network button to show
the quick setting interface of the network parameters.
Figure 9. 33 Network Parameters Configuration
9.4.4 Checking Network Statistics
Purpose :
You can check the network statistics to obtain the real-time information of the device.
Steps:

HIKVISION DS-7324HGHI-SH Specifications

General

Voltage	100 - 240 V
Product color	Black
Audio input channels	4.0 channels
Audio output channels	1.0 channels
Video compression formats	H.264
RS-485 ports	1
Video input channels	24 channels
USB 2.0 ports quantity	3
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA, eSATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	4
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
