User Manual of Digital Video Recorder
10.1 Initializing HDDs
Purpose:
A newly installed hard disk drive (HDD) must be initialized before it can be used with your DVR.
Steps:
1. Enter the HDD Information interface.
Menu > HDD>General.

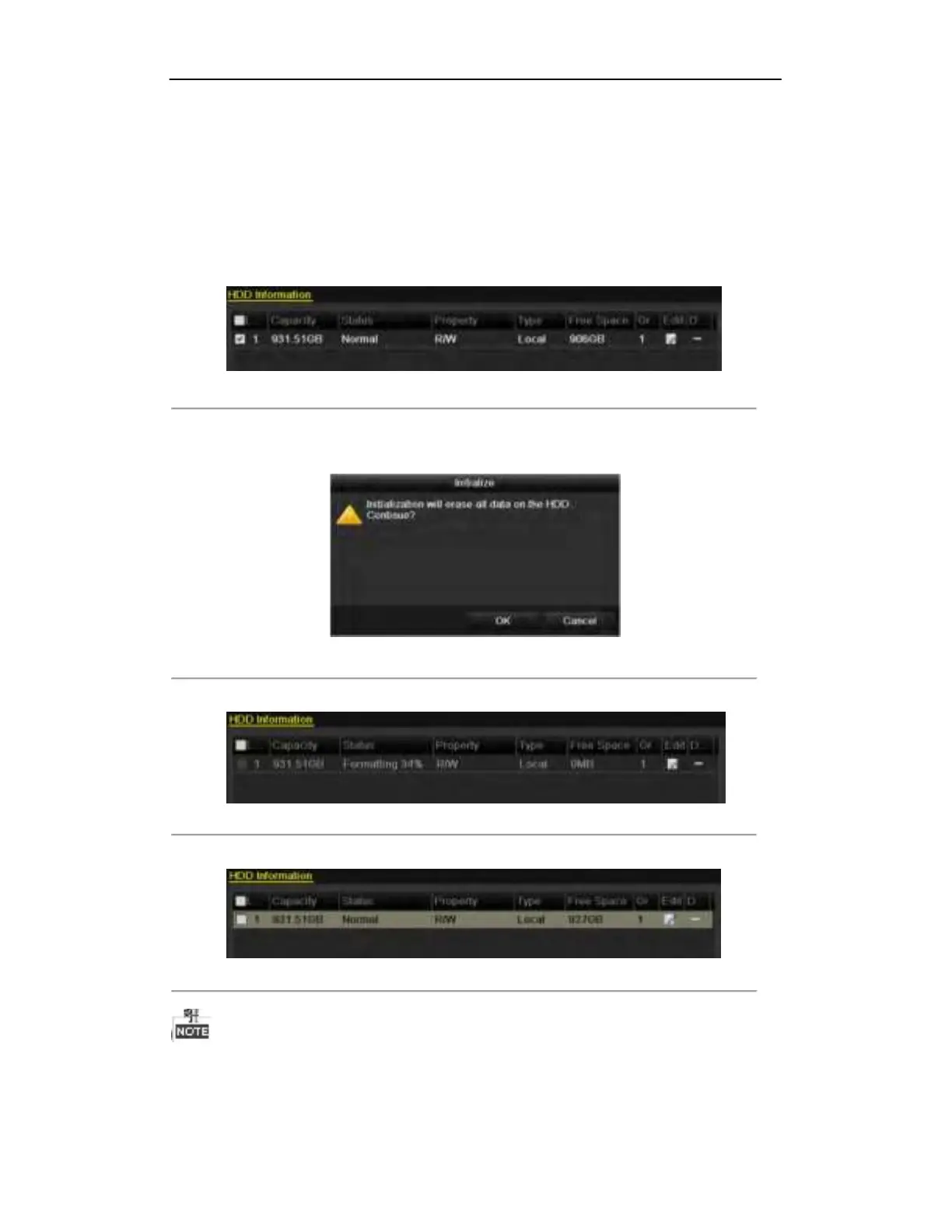

Figure 10. 1 HDD Information Interface
2. Select HDD to be initialized.
3. Click the Init button.
Figure 10. 2 Confirm Initialization
4. Select the OK button to start initialization.
Figure 10. 3 Start Initialization
5. After the HDD has been initialized, the status of the HDD will change from Uninitialized to Normal .
Figure 10. 4 HDD Status Changes to Normal
Initializing the HDD will erase all data on it.
The HDDs which are free of working for a long time can be enabled to sleep, thus to decrease the power

HIKVISION DS-7324HGHI-SH Specifications

General

Voltage	100 - 240 V
Product color	Black
Audio input channels	4.0 channels
Audio output channels	1.0 channels
Video compression formats	H.264
RS-485 ports	1
Video input channels	24 channels
USB 2.0 ports quantity	3
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA, eSATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	4
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
