HIKVISION DS-7324HGHI-SH User Manual

User Manual of Digital Video Recorder
30

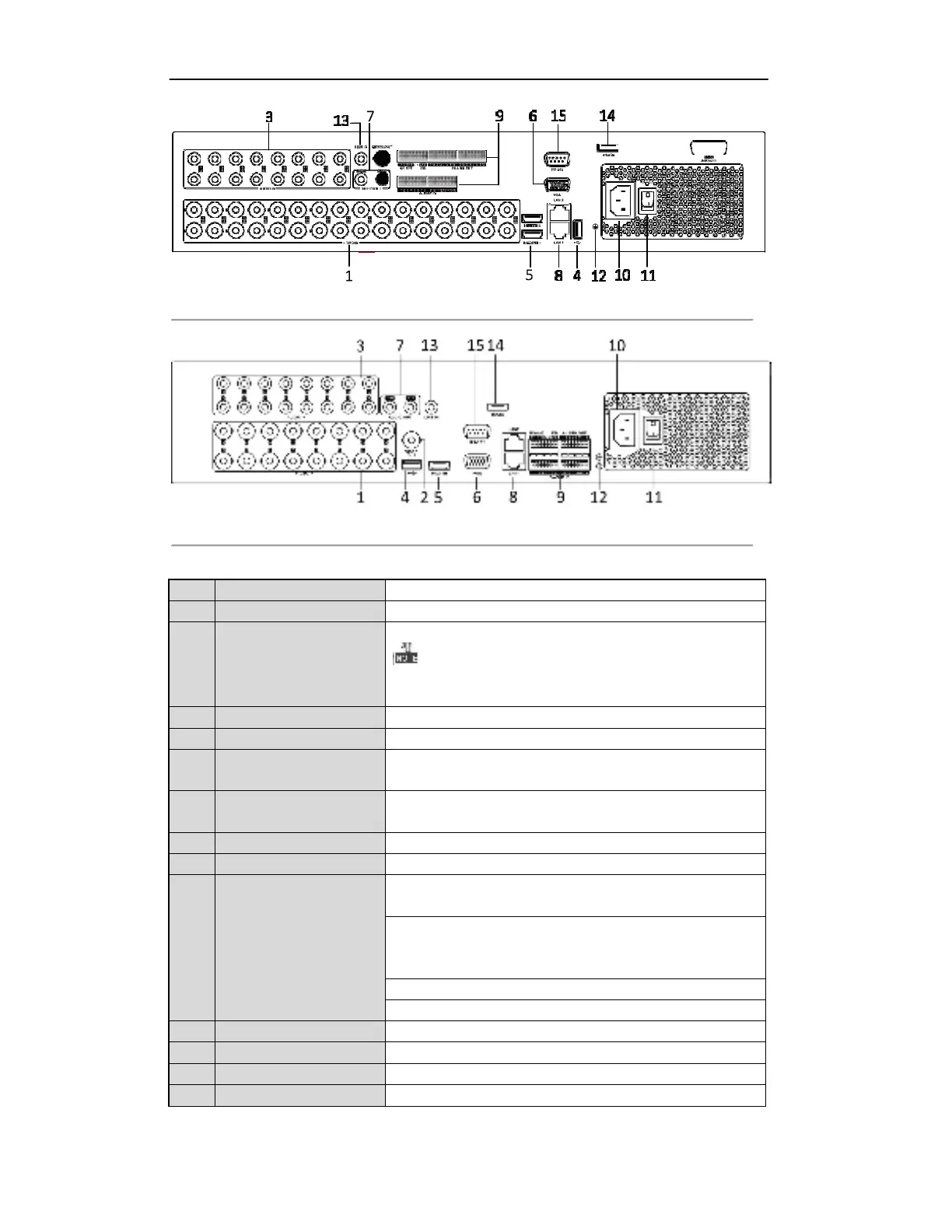

Figure 1. 16 DS-8132HGHI-SH
Figure 1. 17 DS-8100/9000HQHI-SH
Table 1. 12 Description of Front Panel
No. Item Description
1 VIDEO IN
BNC interface for TVI and analog video input.
2
VIDEO OUT
BNC connector for video output.
CVBS output is not provided by DS-7324/7332HGHI-SH and
DS-8124/8132HGHI-SH series.
3 AUDIO IN
RCA connector
4 USB Port
Universal Serial Bus (USB) port for additional devices.
5
HDMI
HDMI video output connector.
DS-8124/8132HGHI-SH provides HDMI1 and HDMI2 interfaces.
6
VGA DB15 connector for VGA output. Display local video output and
menu.
7 AUDIO OUT
RCA connector.
8 Network Interface
Connector for network
9 RS-485 Interface
Connector for RS-485 devices. T+ and T- pins connect to R+ and R-
pins of PTZ receiver respectively.
D+, D- pin connects to Ta, Tb pin of controller. For cascading
devices, the first DVR’s D+, D- pin should be connected with the
D+, D- pin of the next DVR.
Connector for alarm input.
Connector for alarm output.
10 Power Supply
100 ~ 240V AC power supply.
11 Power Switch Switch for turning on/off the device.
12 GND
Ground
13 LINE IN
BNC connector for audio input.

HIKVISION DS-7324HGHI-SH Specifications

General

Voltage	100 - 240 V
Product color	Black
Audio input channels	4.0 channels
Audio output channels	1.0 channels
Video compression formats	H.264
RS-485 ports	1
Video input channels	24 channels
USB 2.0 ports quantity	3
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA, eSATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	4
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
