HIKVISION DS-7332HGHI-SH User Manual

User Manual of Digital Video Recorder
86
5.5 Configuring VCA Record
Purpose:
The DS-7200/7300/8100/9000 support the VCA (line crossing detection and intrusion detection) triggered
recording.
 The VCA settings and VCA event triggered recording is supported by 1 analog camera for DS-
7200/7300/8100HGHI models and 2 analog camers for DS-7200/7300/8100/9000HQHI models.
 DS-7100-SH does not support VCA.
Steps:
1. Enter the VCA settings interface and select a camera for the VCA settings.
Menu> Camera> VCA

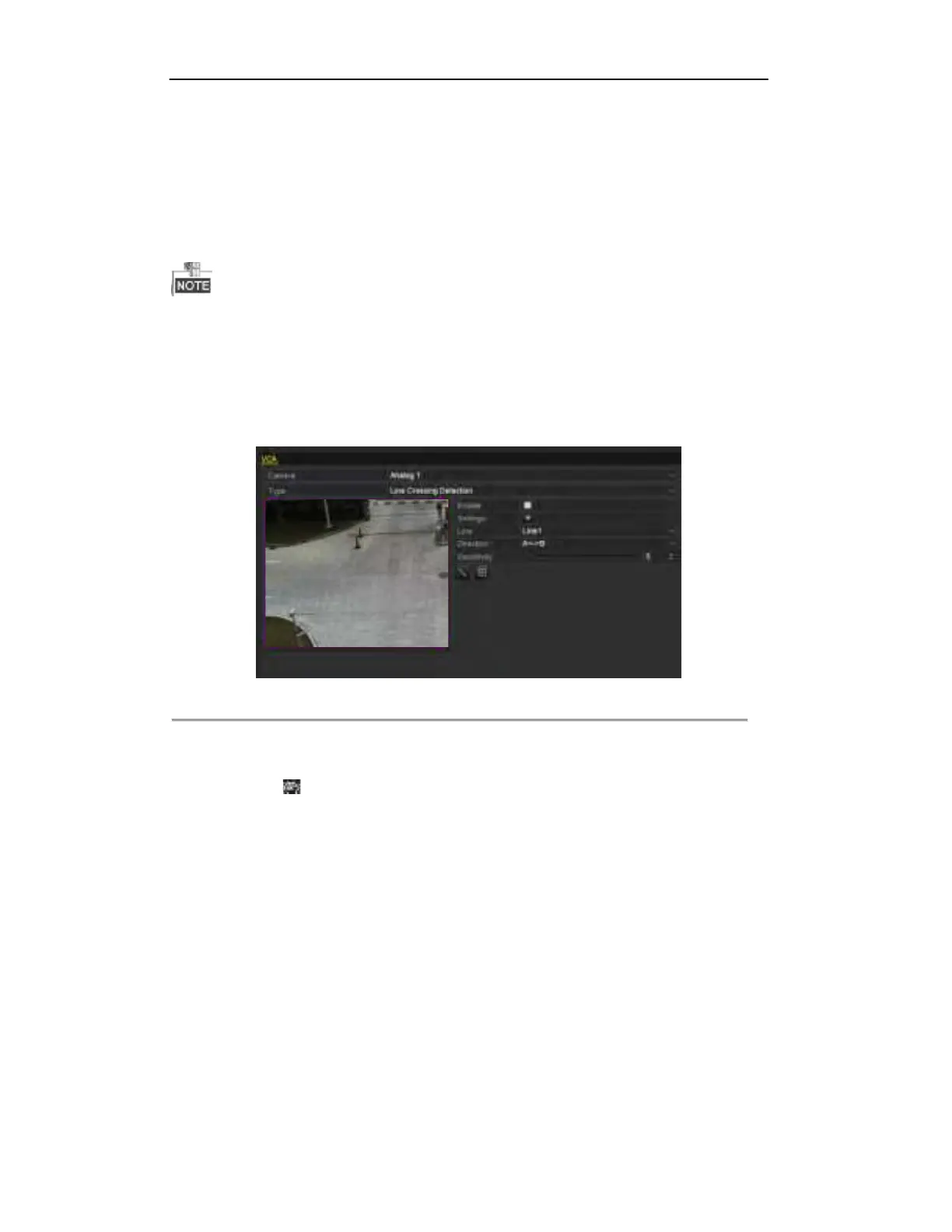

Figure 5. 19 VCA Settings
2. Configure the detection rules for VCA events. For details, see the step 2 in Chapter 8.5 Detecting VCA
Alarm
.
3. Click the icon to configure the alarm linkage actions for the VCA events.
Select
Trigger Channel tab and select one or more channels which will start to record when VCA alarm
is triggered.
Click
Apply to save the settings

HIKVISION DS-7332HGHI-SH Specifications

General

HDD capacity	18000 GB
HDD interface	Serial ATA
Number of HDDs supported	4
Product color	Black
Channels quantity	32 channels
Maximum frame rate	30 fps
Video compression formats	H.264
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
BNC input ports	32
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
Power requirements	100-240V AC, 47 - 63Hz
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
