operation is disabled; you need to switch back to the Main output with the F1 button on front
panel or VOIP/MON button on IR remote control and then press the Enter button.
DS-7200 Series DS-7300 and DS-8100 Series

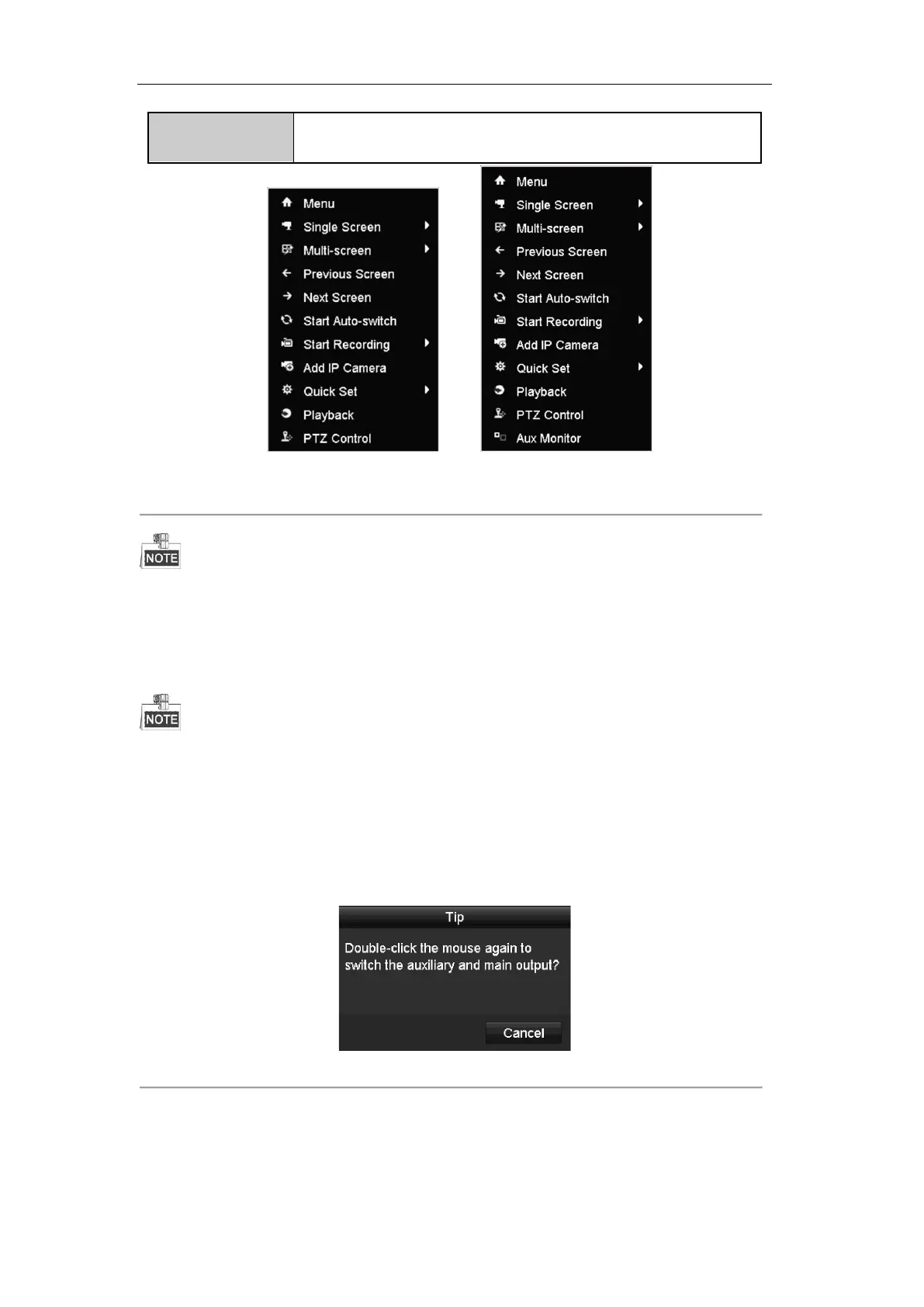

Figure 3. 1 Right-click Menu

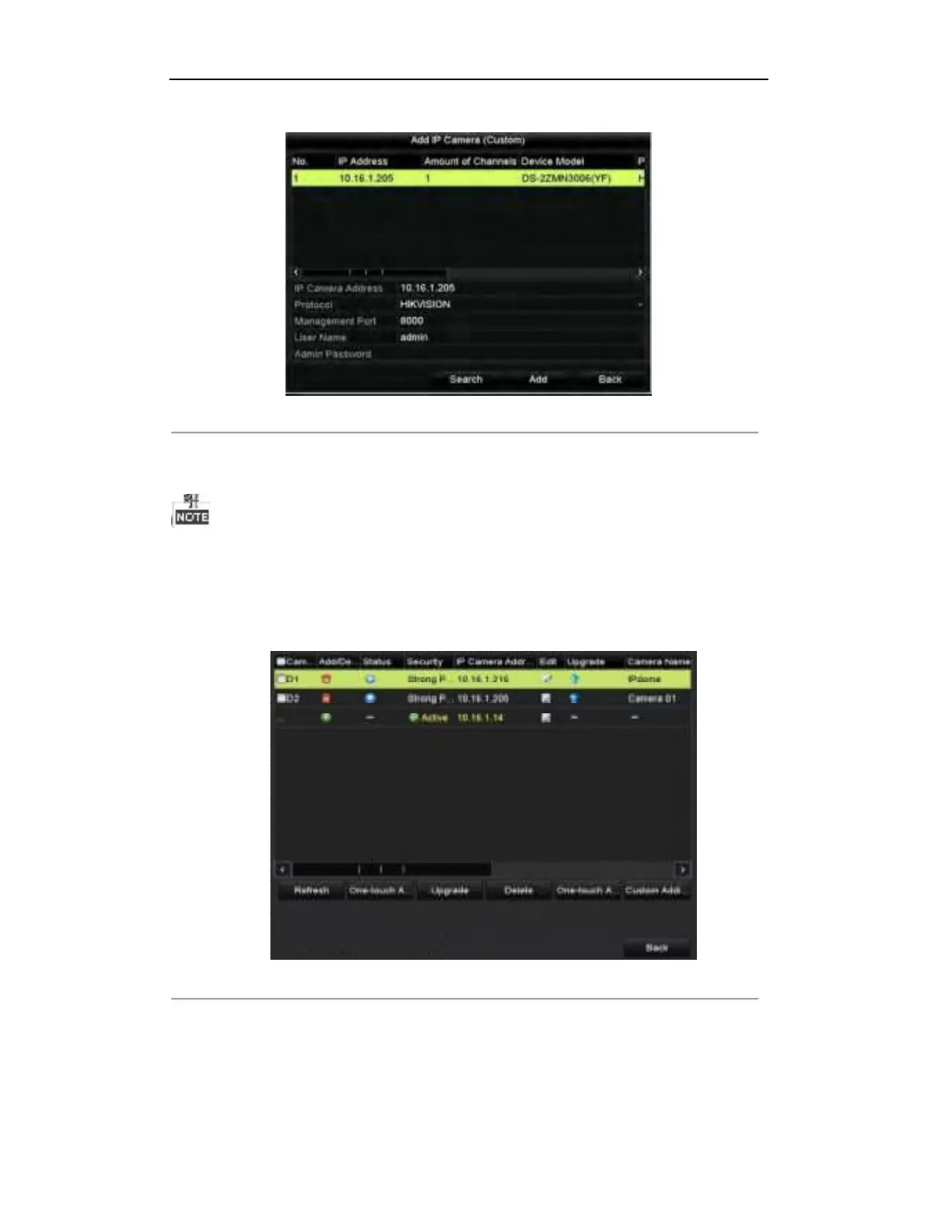

The Add IP Camera is not supported by DS-7100-SH series DVR.
3.2.3 Main/Aux Output Switching
The DS-7100-SH, DS-7200-SH, and DS-7324/7332HGHI-SH models do not support Aux/Main output switch.
When the HDMI/VGA or HDMI1/VGA (DS-8124/8132HGHI-SH) output is configured as the main output, you
can perform the following operation to switch to CVBS or HDMI2 (DS-8124/8132HGHI-SH) output as the
main output.
Steps:
1. Use the mouse wheel to double-click on the HDMI (1)/VGA output screen, and the following message
box pops up:
Figure 3. 2 Switch Main and Aux Output
2. Use the mouse wheel to double-click on the screen again to switch to the Aux output, or click Cancel to
cancel the operation.
3. Select the Menu Output Mode to Main CVBS or HDMI2 from the right-click menu on the monitor.
4. On the pop-up message box, click Yes to restart the device to enable the CVBS output or HDMI2 as the
To Next Page
