Network Video Recorder User Manual
94

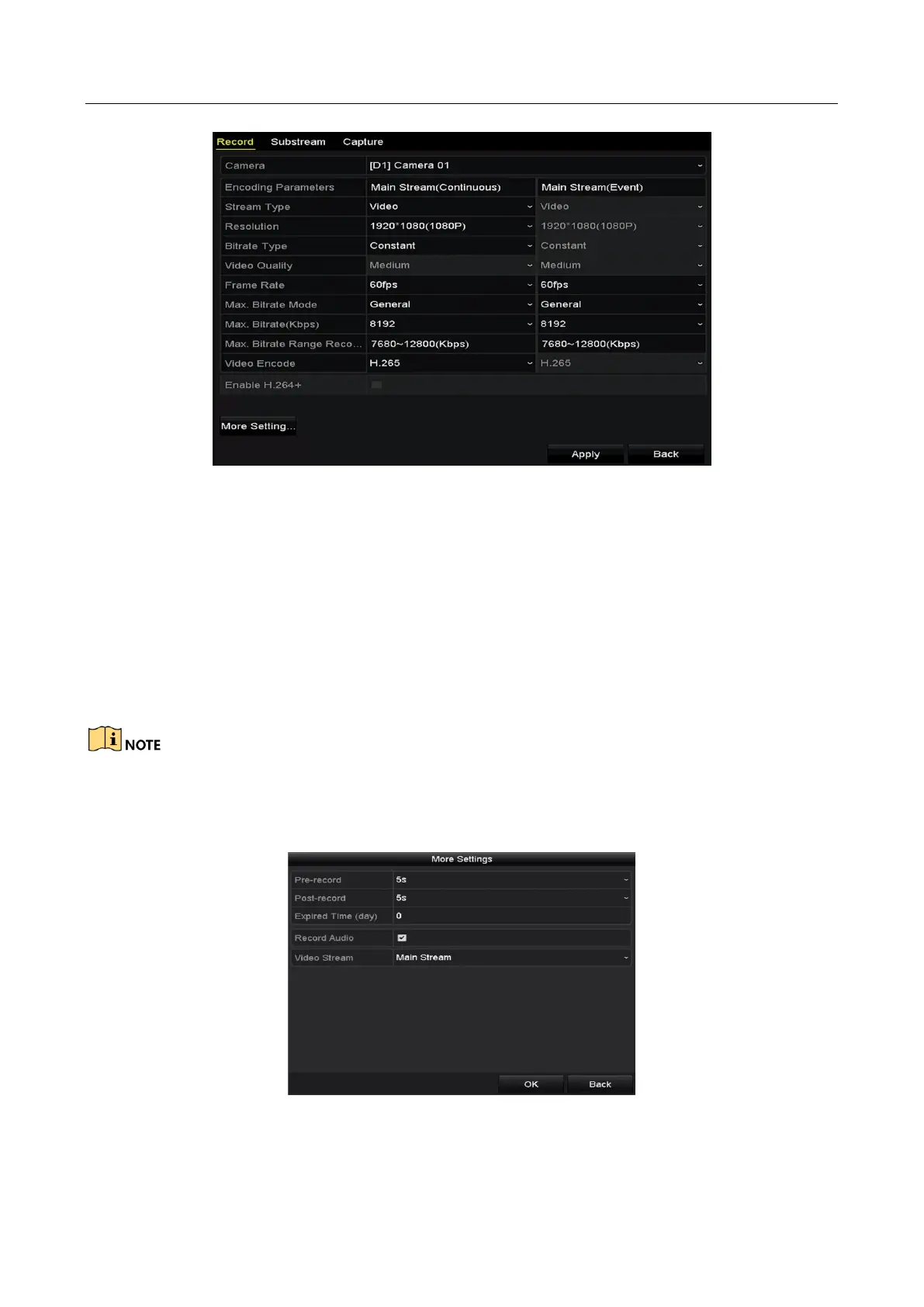

Figure 5-3 Recording Parameters
Step 2 Parameters Setting for Recording
1) Select Record tab page to configure. You can configure the stream type, the resolution,
and other parameters on your demand.
Video Encode: select the video encoding to H.265 or H.264.
Enable H.264+ Mode: check the checkbox to enable. Once enabled, the Max. Bitrate
Mode, Max. Bitrate(Kbps) and Max. Bitrate Range Recommend are not configurable.
Enabling it helps to ensure the high video quality with a lowered bitrate.
The H.265 and H.264+ should be supported by the connected IP camera.
2) Click the More Settings button to set the advanced parameters for recording and then
click OK button to finish editing.
Figure 5-4 More Settings
