HIKVISION DS-7600NI-K1 Series - DS-7600 NI Series

Network Video Recorder User Manual
26
No.
Name
Description
10
100 to 240 VAC
100 to 240 VAC power supply.
11
Power Switch
Switch for turning on/off the device.
12
GROUND
Ground (needs to be connected when NVR starts up).
1.5.2 DS-7600NI Series
DS-7600NI-I2 (/P) and DS-7600NI-K2 (/P)

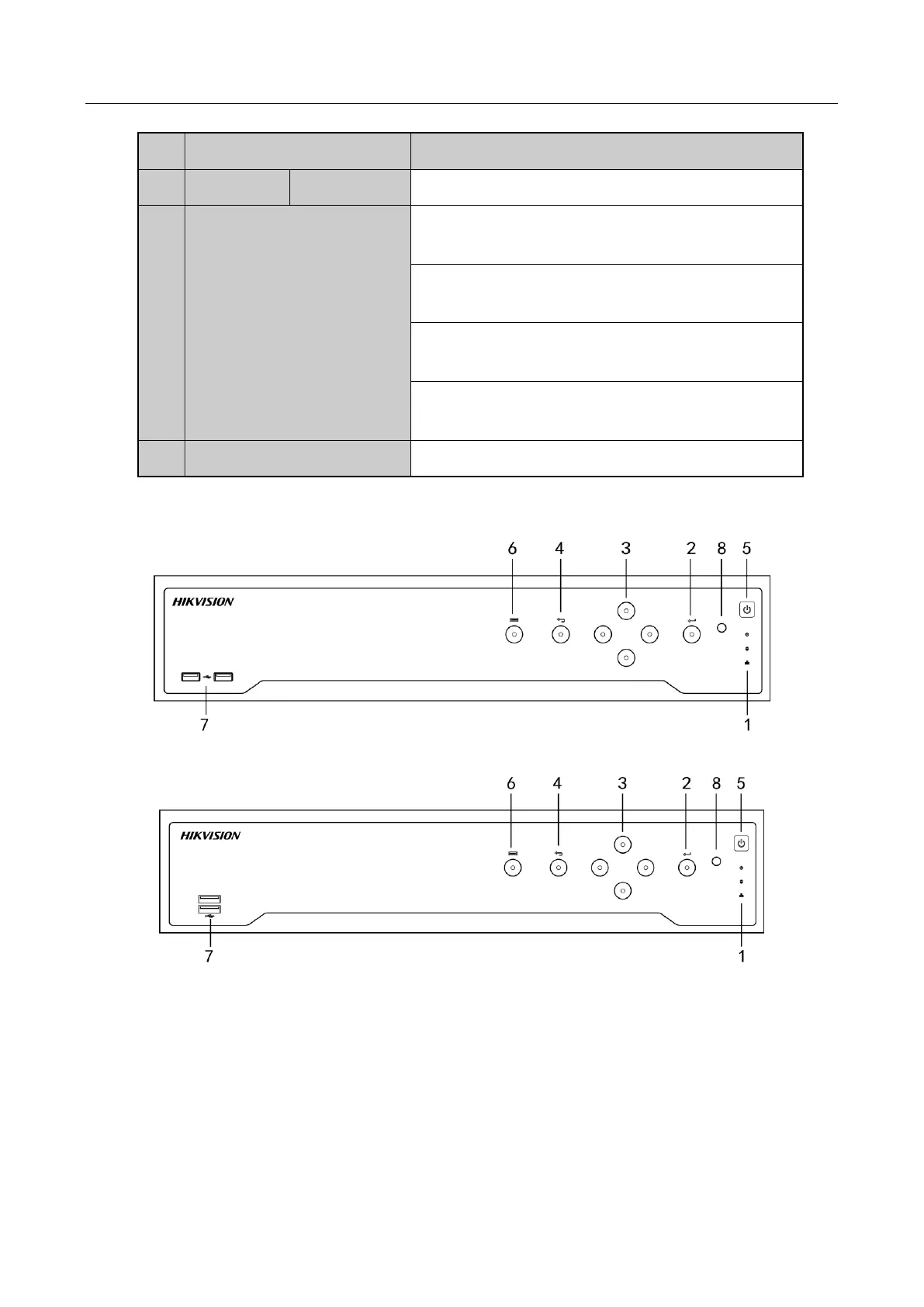

Figure 1. 9 DS-7600NI-I2 and DS-7600NI-K2 Series
Figure 1. 10 DS-7600NI-I2/8P and DS-7600NI-K2/8P Series
The DS-7616NI-I2/16P and DS-7632NI-I2/16P provide 16 network Interfaces with PoE function.
Table 1. 6 Panel Description
No.
Name
Description
1
Audio In
RCA connector for audio input.
2
Audio Out
RCA connector for audio output.
3
VGA Interface
DB9 connector for VGA output. Display local video output and menu.
4
HDMI Interface
HDMI video output connector.
5
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
6
LAN Network Interface
1 10/100/1000 Mbps self-adaptive Ethernet interface
7
USB Interface
Universal Serial Bus (USB 3.0) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Supply
12 VDC power supply for DS-7600NI-I4 and DS-7600NI-K4, and 100
to 240 VAC for DS-7600NI-I4/P and DS-7600NI-K4/P.
10
Power Switch
Switch for turning on/off the device.
11
Network Interfaces with
PoE function
(supported by
DS-7600NI-I2/P)
Network interfaces for the cameras and to provide power over Ethernet.
