HIKVISION DS-7604NI-K1/4P Quick Start Guide

Network Video Recorder Quick Start Guide
9
No.
Name
Function Description
Shows/hides the control interface in playback mode.
PREV/FOCUS-
Switches between single screen and multi-screen mode.
Adjusts the focus in conjunction with the A/FOCUS+ button in
PTZ control mode.
PTZ/IRIS-
Enters the PTZ Control mode.
Adjusts the iris of the PTZ camera in PTZ control mode.
8
Control
Buttons
DIRECTION
Navigates between different fields and items in menus.
In the playback mode, use the Up and Down buttons to speed up
and slow down recorded video. Use the Left and Right buttons
to select the next and previous video files.
Cycles through channels in live view mode.
Controls the movement of the PTZ camera in PTZ control mode.
ENTER
Confirms selection in any of the menu modes.
Checks the checkbox fields.
Plays or pauses the video playing in playback mode.
Advances the video by a single frame in single-frame playback
mode.
Stops/starts auto switch in auto-switch mode.
9
JOG SHUTTLE Control
Moves the active selection up and down in a menu.
Cycles through different channels in live view mode.
Jumps 30s forward/backward in video files in the playback
mode.
Controls the movement of the PTZ camera in PTZ control mode.
10
POWER ON/OFF
Long press the button for more than 3 seconds to turn on/off the
NVR.

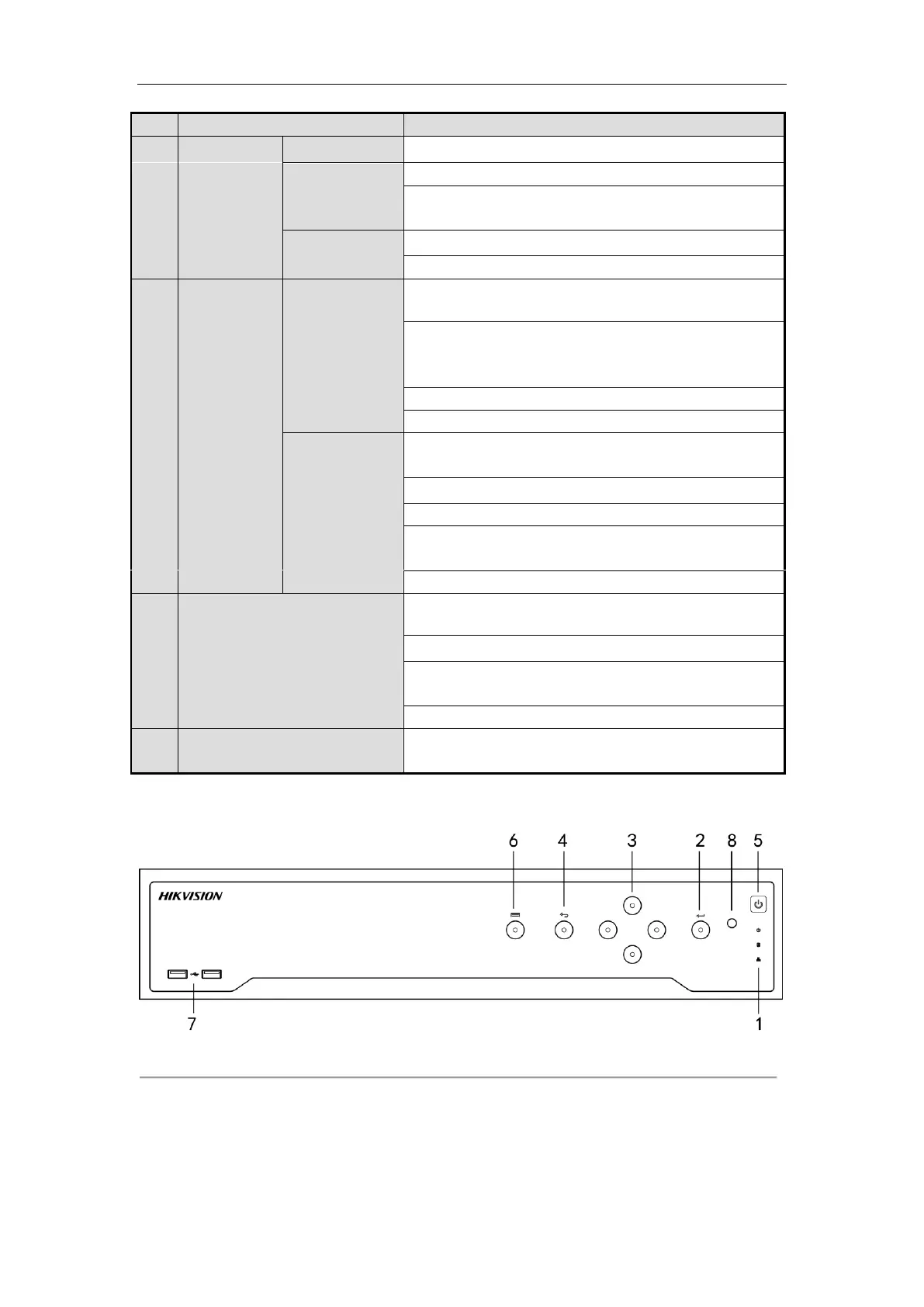

1.1.2 DS-8600NI and DS-7700NI Series
Figure 1. 3 DS-8600NI-K8 Series

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
