3.10 One-Touch RAID Configuration
The RAID is supported by DS-9600NI-I8 and DS-9600NI-I16 series NVR only.
Purpose:
The device supports the RAID storage function. Through one-touch configuration, you can quickly create the disk
array. By default, the array type to be created is RAID 5.
Before you start:
As the default array type is RAID 5, at least 3 HDDs must be installed in you device. And if more than 10 HDDs
are installed, 2 arrays can be configured.
Steps:
1. Enter the Physical Disk Settings interface.
Menu > HDD > RAID

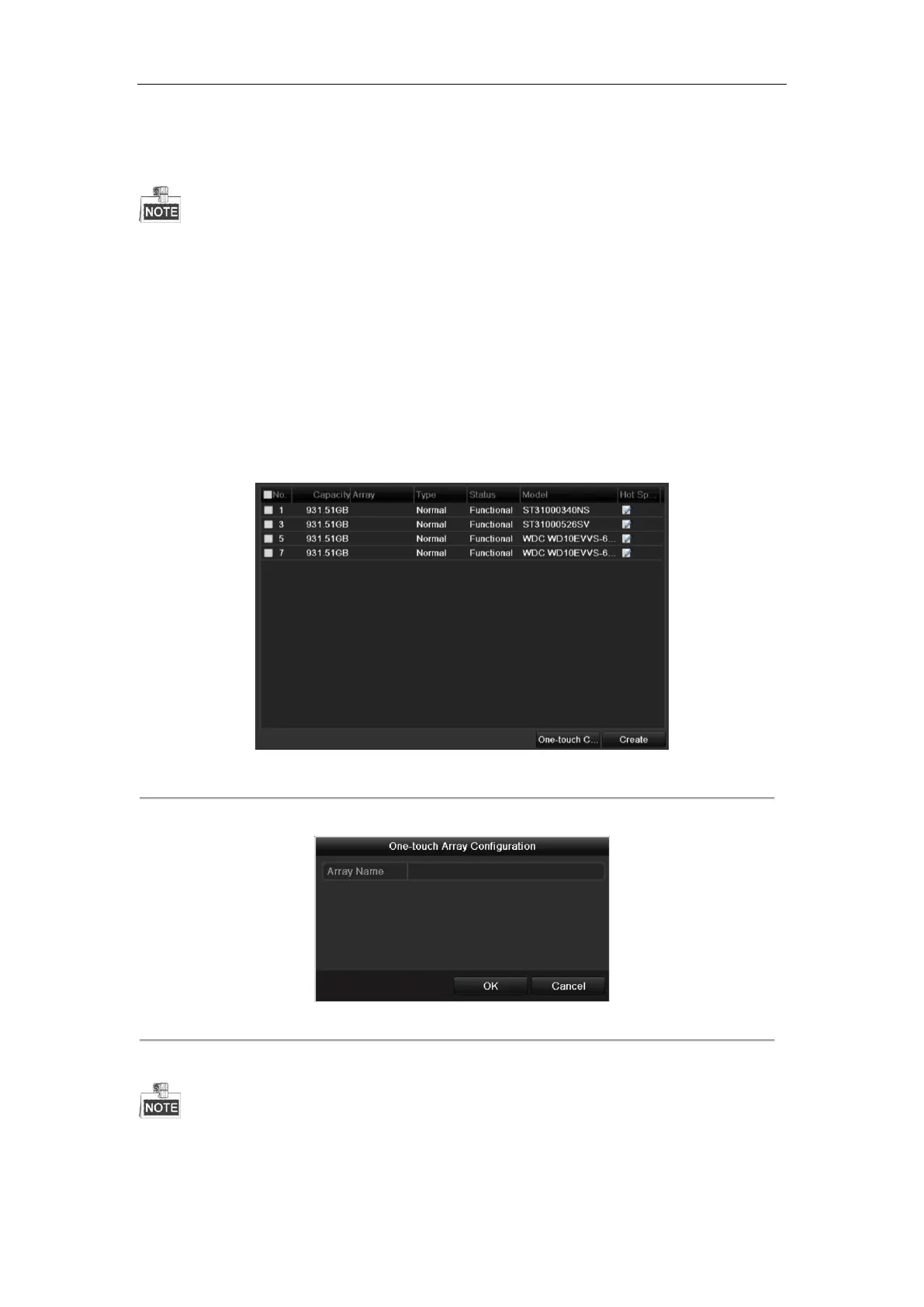

Figure 3. 13 RAID Settings Interface
2. Click One-touch Configuration to enter the One-touch Array Configuration interface.
Figure 3. 14 One-touch Array Configuration
3. Edit the array name in the Array Name text field and click OK button to start configuring array.
If you install 4 HDDs or more for one-touch configuration, a hot spare disk will be set by default. It is
recommended to set a hot spare disk for automatically rebuilding the array when the array is abnormal.
4. When the array configuration is completed, click OK button in the pop-up message box to finish the settings.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
