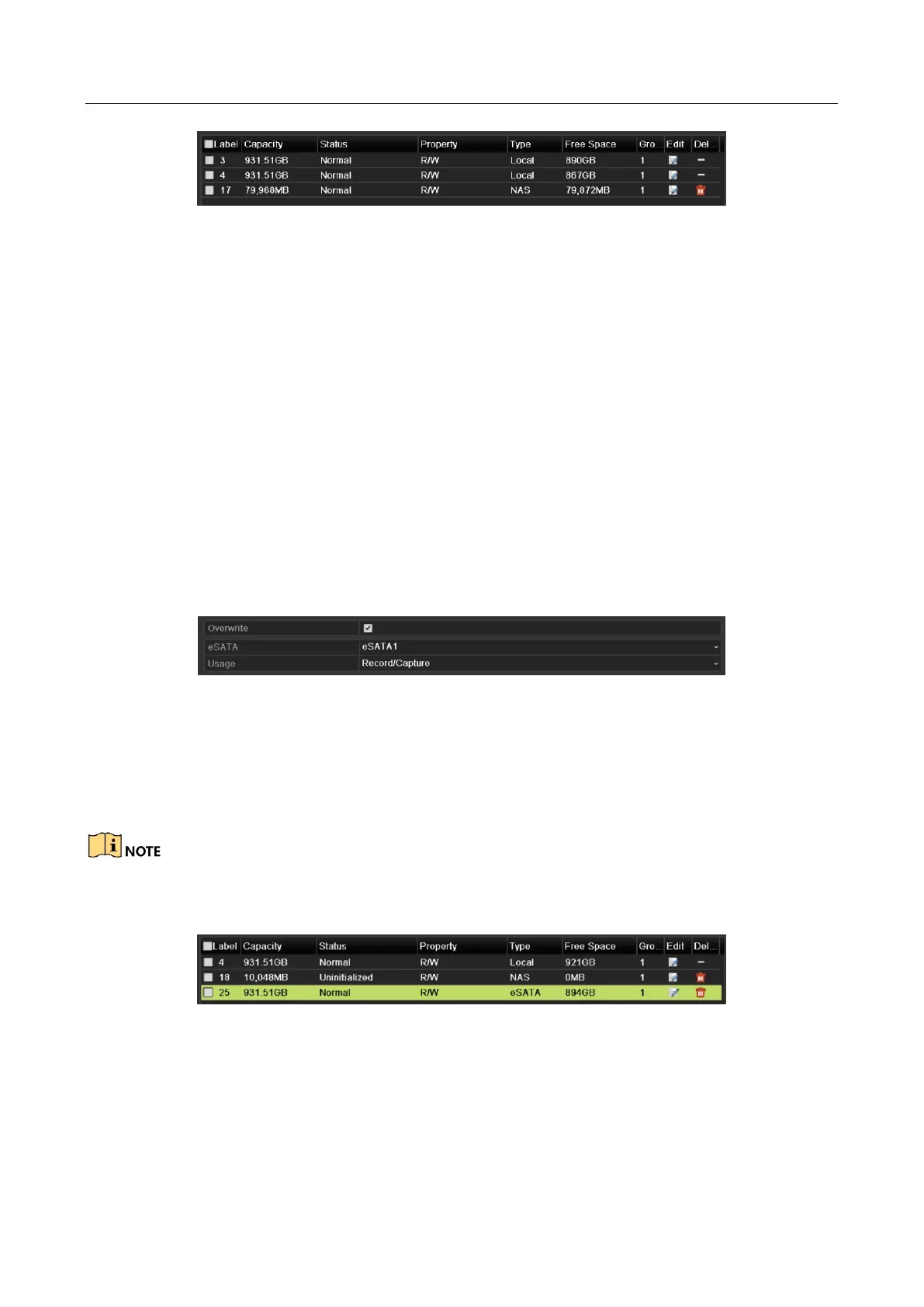

Figure 14-10 Initialize Added NetHDD
14.3 Managing eSATA
Purpose:
When there is an external eSATA device connected to NVR, you can configure eSATA for the use of
Record/Capture or Export, and you can manage the eSATA in the NVR.
Step 1 Enter the Advanced Record Settings interface.
Menu >Record>Advanced
Step 2 Select the eSATA type to Export or Record/Capture from the dropdown list of eSATA.
Export: use the eSATA for backup. Refer to Backup using eSATA HDDs in Chapter Backing up
by Normal Video/Picture Search for operating instructions.
Record/Capture: use the eSATA for record/capture. Refer to the following steps for
operating instructions.
Figure 14-11 Set eSATA Mode
Step 3 When the eSATA type is selected to Record/Capture, enter the HDD Information interface.
Menu > HDD>General
Step 4 Edit the property of the selected eSATA, or initialize it is required.
Two storage modes can be configured for the eSATA when it is used for Record/Capture. Please
refer to Chapter Managing HDD Group and Chapter Configuring Quota Mode for details.
Figure 14-12 Initialize Added eSATA

HIKVISION DS-7716NI-K4 Specifications

General

Audio system	2-way
Input bandwidth	160 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
RS-232 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Wi-Fi	No

Weight and Dimensions

Depth	400 mm
Width	445 mm
Height	71 mm
Weight	5000 g
