HIKVISION DS-9616NI-I8 Quick Start Guide

1 1 S E T U P R E C O R D I N G ( c o n t i n u e d )
 Motion Detection Areas

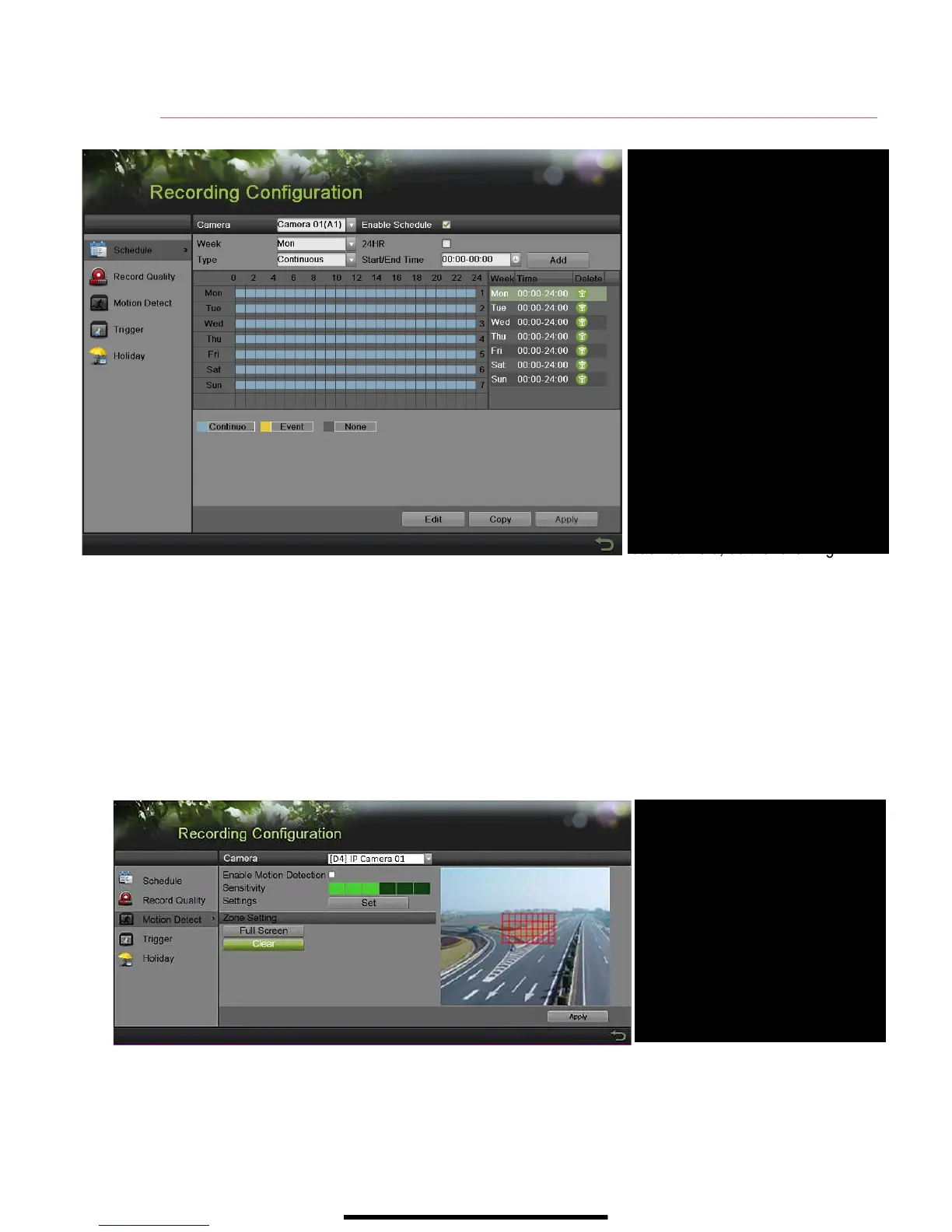

To define the image areas that Motion Detection will monitor for each camera, do the following:
1. Go to MENU > RECORDING CONFIGURATION > MOTION DETECT.
2. Use Camera pull-down menu to select camera to configure.
3. Check the Enable Motion Detection checkbox to enable motion detection.
4. Use the Sensitivity boxes to select how responsive the detection should be (the more
green boxes lit, the greater the sensitivity).
5. Drag a grid(s) over the area(s) on the image that will be sensitive to motion.
6. Click the Settings Set button to configure Arming Schedule (when detection is
enabled) and Linkage Actions (what action(s) to take when motion is detected).

CAMERA
Select camera
ENABLE MOTION DETECTION
Click to enable/disable
MOTION GRID
Draw grid area to detect motion
SENSITIVITY
No. of squares sets sensitivity 
 SETTINGS/SET
Set arming schedule, link actions
APPLY
Click to apply settings








TYPE
Motion or Continuous (default)
 COLOR
Shows Recording Schedule days:
• Blue=Continuous
• Yellow=Event (motion/alarm)
• Grey=None
 TIMES
Customize schedule times (ignore for
“motion only” recording)
 ADD
Press to add time settings to
schedule
 ENABLE SCHEDULE
If not checked, camera will not record










HIKVISION DS-9616NI-I8 Specifications

General

Sequence mode	Yes
Internal memory	4096 MB
Number of users	128 user(s)
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Internal memory type	DDR4
Throughput data rate	256 Mbit/s
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RAID levels	0, 1, 5, 10
HDD capacity	8000 GB
HDD interface	Serial ATA
Maximum storage capacity	- TB
Number of HDDs installed	-
Number of HDDs supported	8
Total installed storage capacity	16000 GB
Product color	Black
Rack capacity	2U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
