HIKVISION DS-96256NI-I24 User Manual

Network Video Recorder User Manual
171
1. Enter the Physical Disk Settings interface.
Menu > HDD > RAID > Physical Disk

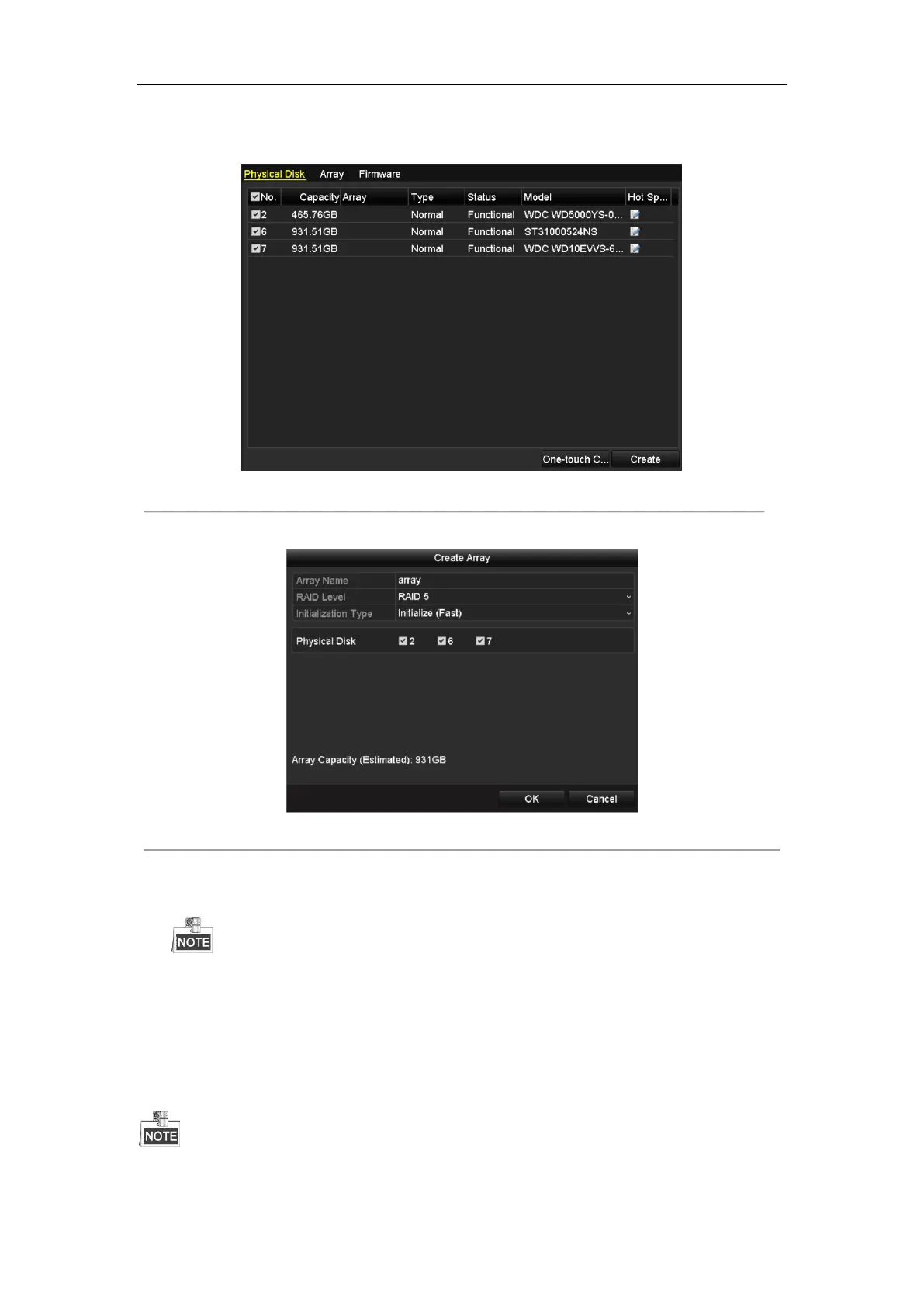

Figure 12. 7 Physical Disk Settings Interface
2. Click Create button to enter the Create Array interface.
Figure 12. 8 Create Array Interface
3. Edit the Array Name; set the RAID Level to RAID 0, RAID 1, RAID 5, RAID6, or RAID 10; select the
Physical Disk that you want to configure array.
 If you choose RAID 0, at least 2 HDDs must be installed.
 If you choose RAID 1, 2 HDDs need to be configured for RAID 1.
 If you choose RAID 5, at least 3 HDDs must be installed.
 If you choose RAID 6, at least 4 HDDs must be installed.
 If you choose RAID 10, the number of HDDs installed should be even in the range of 4 to 16.
4. Click OK button to create array.
If the number of HDDs you select is not compatible with the requirement of the RAID level, the error message box
