Video Wall Controller • User Manual
47

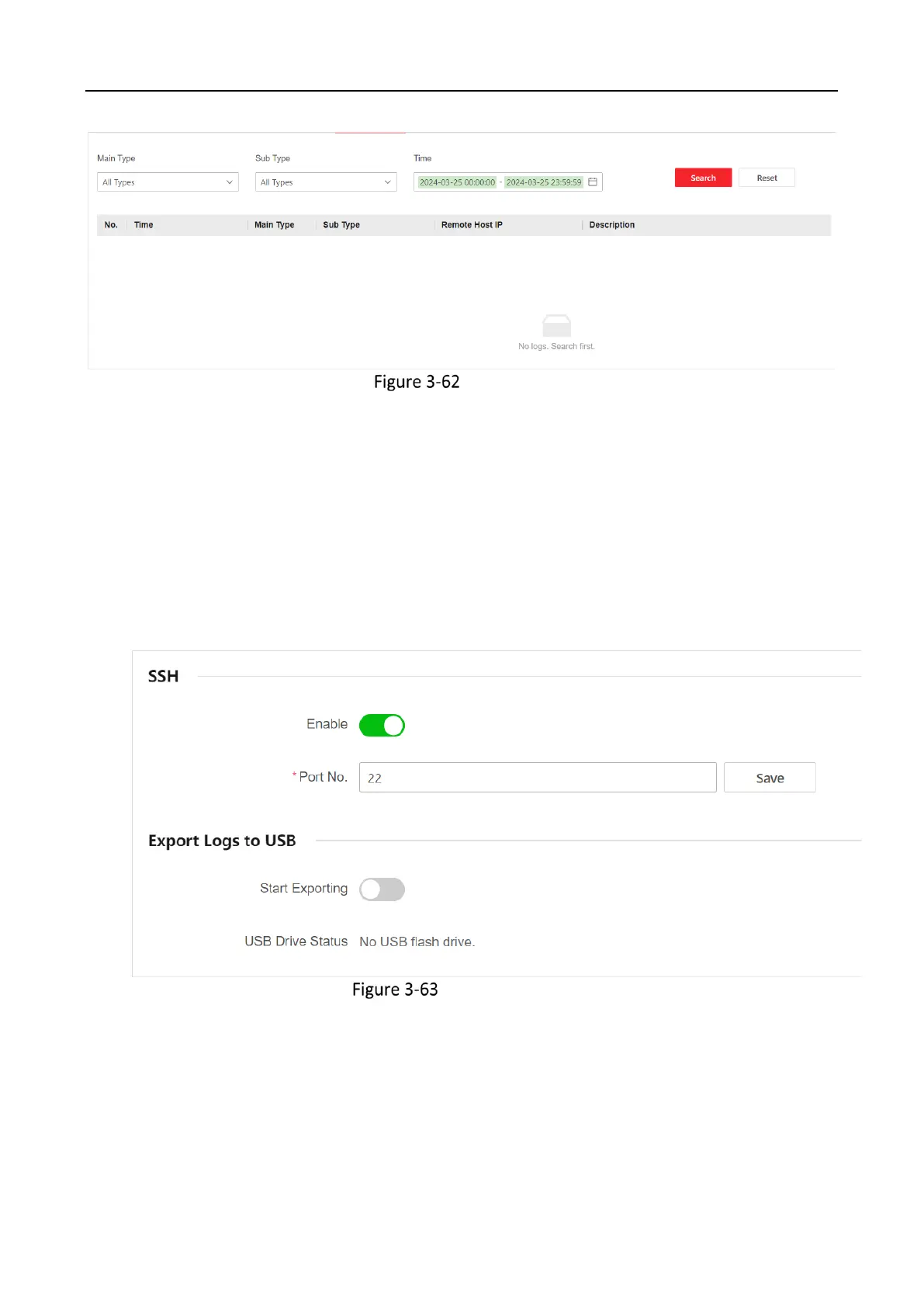

Search Logs
Debug the Device
Click Device Debugging to configure the following parameters:
Enable SSH (Secure Shell) as required. With SSH enabled, you can use a computer installed
with the SSH client to access the device.
Insert a USB flash drive into the device, and click Start Exporting to export the logs to the USB
flash drive.
Format the USB flash drive before inserting into the device. Only the USB flash drives in
FAT32 format are supported.
Debug the Device
Upgrade LED Receiving Card
If the LED screen is in black or mosaic after the screen parameters are loaded, you can import
the receiving card configuration file to solve this problem.
1) Click Upgrade LED Receiving Card.
2) Select a receiving card configuration file, and then click Import.
