LCD Display Quick Start Guide
2
Chapter 2 Installation
The device should be installed in an environment where the temperature range is from 5 °C to 35 °C
(41 °F to 95 °F) and the humidity range is from 30% to 75% RH.
Before you start
Before installation, place the device on a clean horizontal desk and avoid any collision or bump.
Steps
1. Take out the items in Package No. 4.
2. Remove the five screws on the maintenance rear cover, and take off the cover. Keep the screws
and the cover.

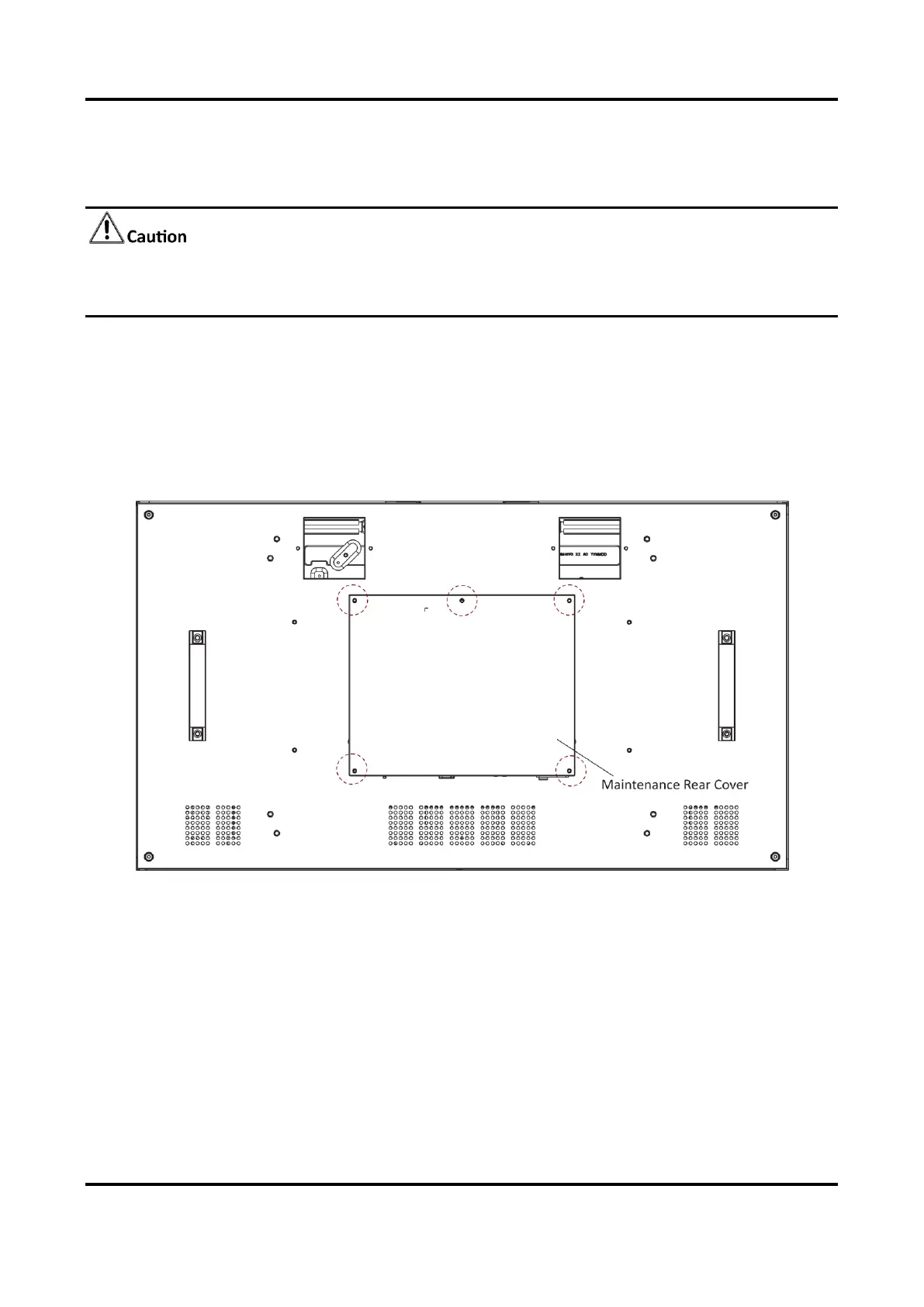

Figure 2-1 Remove Maintenance Rear Cover
3. Take power supply board out from Package No. 1. Place the power supply board on the position
reserved for it on the display back, and fix it with four M3 × 6 screws.
