Chapter 2 Rear Panel Interface

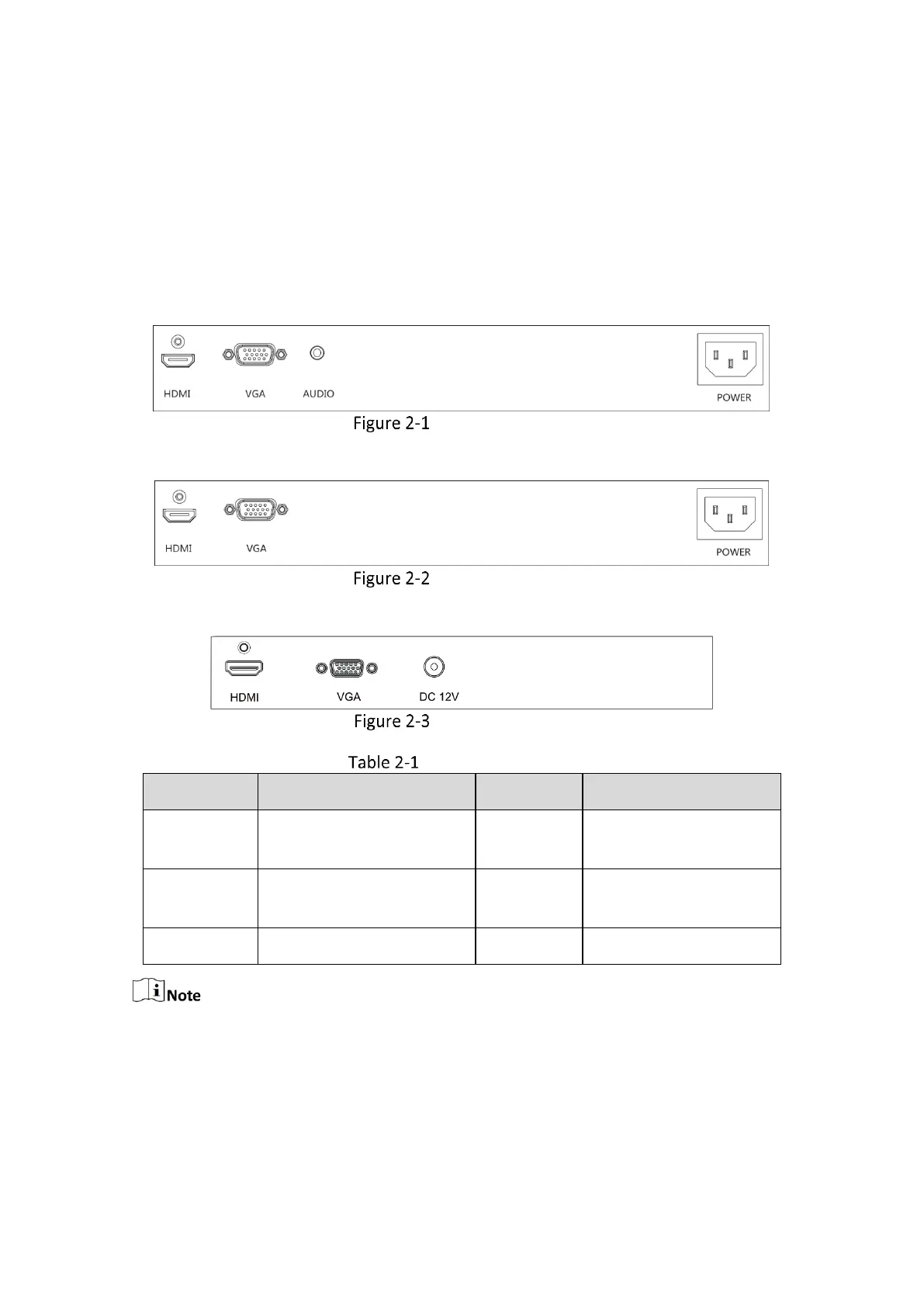

The panel appearances and interfaces vary with different models. The devices can be classified as
follows.
Type A
Interface of Type A
Type B
Interface of Type B
Type C
Interface of Type C
Interface Description
Interface
Description
Interface
Description
HDMI
HDMI digital signal input
interface
AUDIO
Audio input interface
VGA
VGA analog signal input
interface
POWER
AC power supply
DC 12 V
Power adapter interface
--
--
Audio input interface is only available to type A, and power adapter interface to type C.
