HIKVISION DS-K1103MK Connecting Guide

Title:
DS-K1100 Series Card Readers Connect
to DS-K1T105&DS-K1T200 Series
Access Control Terminal
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
2 of 4

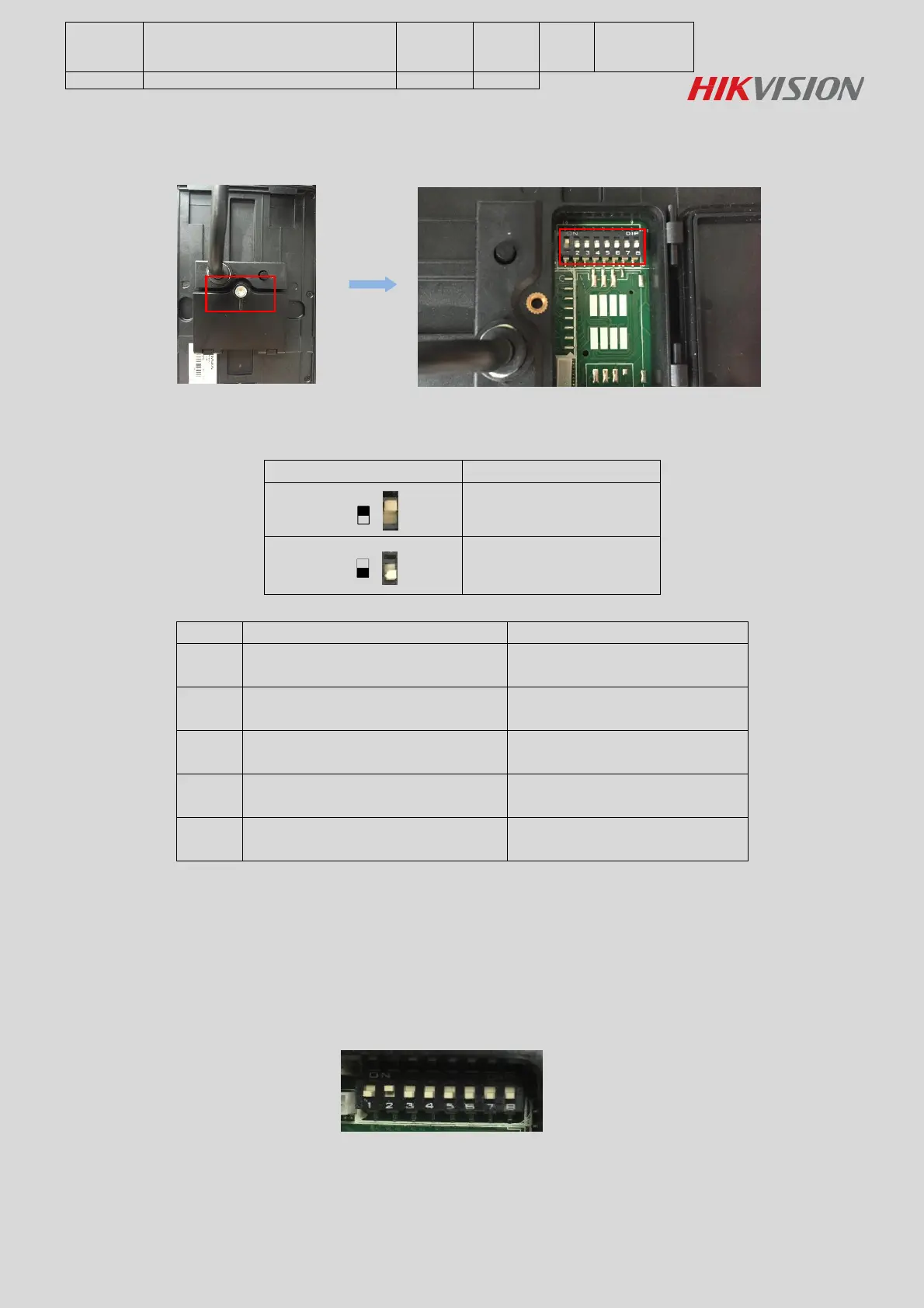

3. Please check the rear panel of card reader and unscrew it, you could find DIP switch module;
The No. of DIP switch from left to right is 1~8:
Description of DIP Switch:
Icon
Description
Represent 1 in binary mode
Represent 0 in binary mode
No.
Description
DIP Switch Status
1~4
Address of RS485
1: 1
0: 0
5
Read card No. or file in card(Reserved)
1: read card No;
0: read file in card.
6
Wiegand protocol or RS-485 protocol
1: Wiegand protocol
0: RS-485 protocol.
7
Wiegand Protocol
(available when No. 6 is 1)
1: Wiegand protocol of 26-bit;
0: Wiegand protocol of 34-bit.
8
Matched Resistance(Reserved)
(available for RS-485 protocol)
1: Enable;
0: Disable.
RS485 Wiring
Step 1: DIP Switch
Please set the DIP switch firstly before connecting the external card reader, the binary value of the card
reader is 0100 0000, please set as the following picture;

HIKVISION DS-K1103MK Specifications

General

UN number	-
Front camera	No
RS-485 ports	1
Type	Basic access control reader
Certification	FCC, CE
Product color	Black, Grey
LED indicators	Status
RFID frequency	13.56 MHz
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Access code reader	Yes
Authentication type	Access chip/card
Keypad number of keys	12
Access chip/card reader type	Contactless
Contactless working distance	50 mm
International Protection (IP) code	IP64
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	12 V
Power consumption	500 mA
Power consumption (typical)	2 W

Weight and Dimensions

Depth	14.7 mm
Width	76 mm
Height	129 mm
Weight	150 g
