HIKVISION DS-K1103MK Manual

Title:
DS-K1100 Series Card Readers Connect
to DS-K2600 Series Access Controllers
by RS-485
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
3 of 4
For example, if you want to swipe card to open the first door, no matter your access controller is DS-
K2601, DS-K2602 or DS-K2604, the binary value of the entrance card reader should be 1000 0000 and
the binary value of the exit card reader should be 0100 0000.

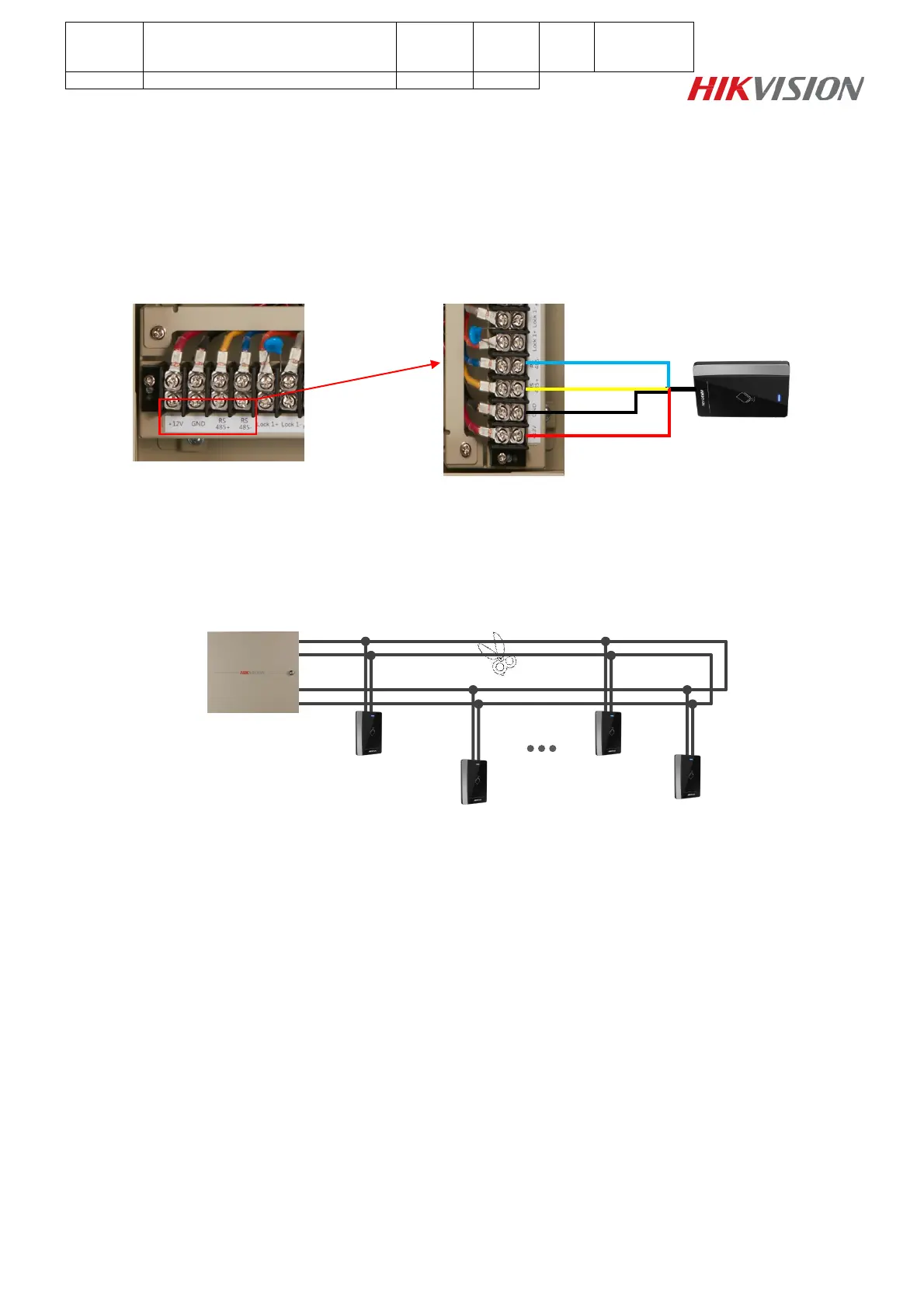

Step 2: RS-485 Wiring
Please connect card reader to access controller as following picture:
Note
1. Actually you can find RS485 A/B/C/D interfaces in access controller; we extend RS485 A interface
to the wiring distribution for easier cable connection and we use RS485B interface for backup, the
cable connection as following picture:
2. About wiring materials, we suggest customer choose RVVP cable.
RS485-
RS485+
GND
+12V
RS485 A+
RS485 A-
RS485 B+
RS485 B-

HIKVISION DS-K1103MK Specifications

General

UN number	-
Front camera	No
RS-485 ports	1
Type	Basic access control reader
Certification	FCC, CE
Product color	Black, Grey
LED indicators	Status
RFID frequency	13.56 MHz
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Access code reader	Yes
Authentication type	Access chip/card
Keypad number of keys	12
Access chip/card reader type	Contactless
Contactless working distance	50 mm
International Protection (IP) code	IP64
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	12 V
Power consumption	500 mA
Power consumption (typical)	2 W

Weight and Dimensions

Depth	14.7 mm
Width	76 mm
Height	129 mm
Weight	150 g
