HIKVISION DS-K1201AEF User Manual

Fingerprint and Card Reader User Manual
8

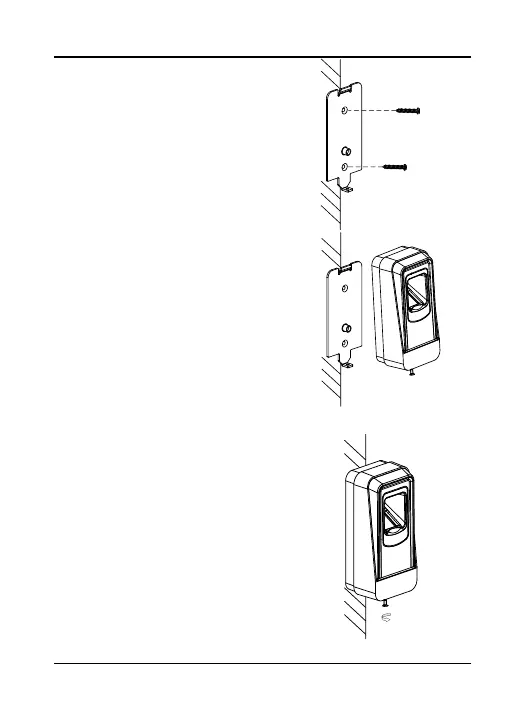

1. Fix the mounting plate on
the wall with 2 provided
screws.
Note: Do not warp the
mounting plate when
installing.
2. Connect the cables between
the controller and the card
reader. For details, refer to 2.3
Wiring Cables.
3. Unscrew the screw at the
bottom of the card reader.
4. Buckle the card reader up to
the plate.
5. Fasten the card reader to the
plate with the set screw.

HIKVISION DS-K1201AEF Specifications

General

Brand	HIKVISION
Model	DS-K1201AEF
Category	Card Reader
Language	English
