1.2 Indicator and Component

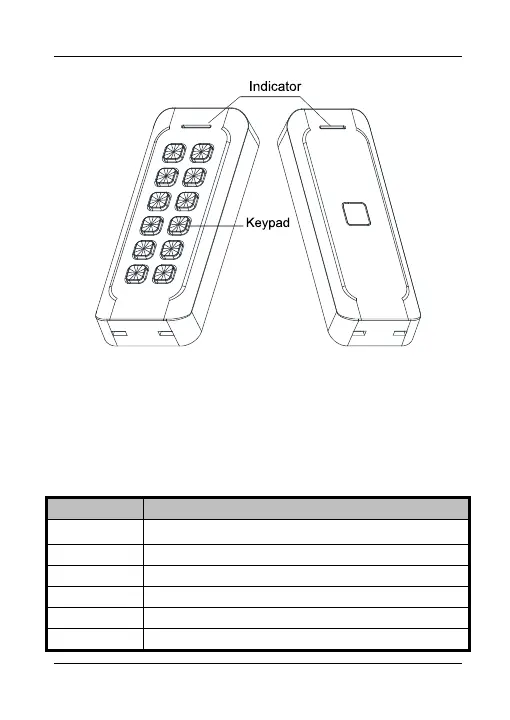

Figure 1-2 Indicator and Component
Chapter 2 Installation
2.1 Definition of Cable
The description of cables is shown below.
Table 2-1 Description of Cable
Color
Description
Red
PWR (+12 VDC)
Black
GND
Purple
Beep Control
Brown
OK
Orange
ERR
Green
Wiegand W0
