HIKVISION DS-K1T342 Series User Manual

Note
Solder aer pressing rivets to avoid water from entering.

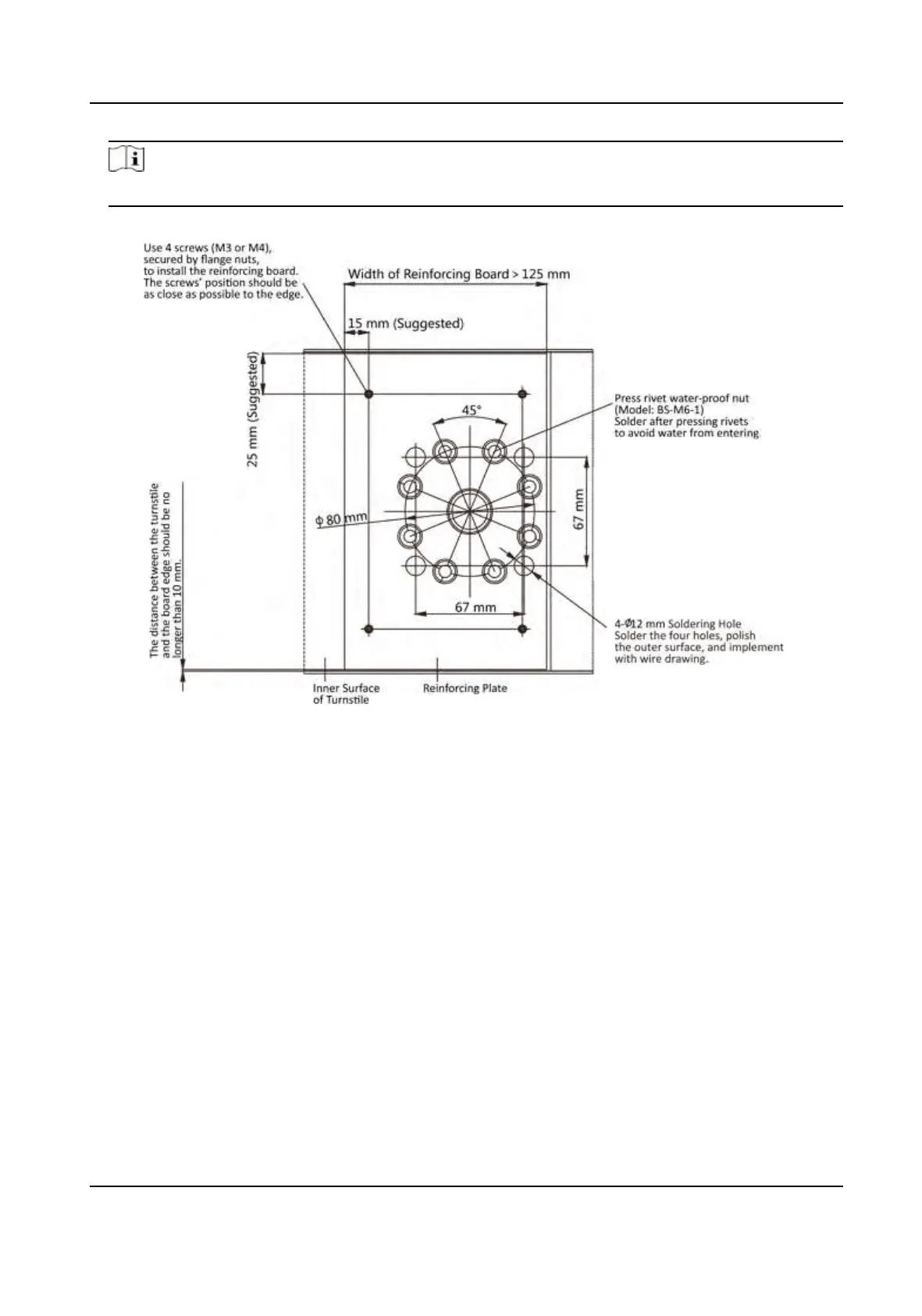

Figure 3-16 Drill Holes on Turnsle
3.
Solder the other four holes, polish the surface, and implement wire drawing.
4.
Solder circular tubes on the turnsle’s inner surface to avoid water from entering.
DS-K1T342 Series Face Recognion Terminal User Manual
17
