HIKVISION DS-K1T802 Series User Manual

Access Control Terminal·Quick Start Guide
10

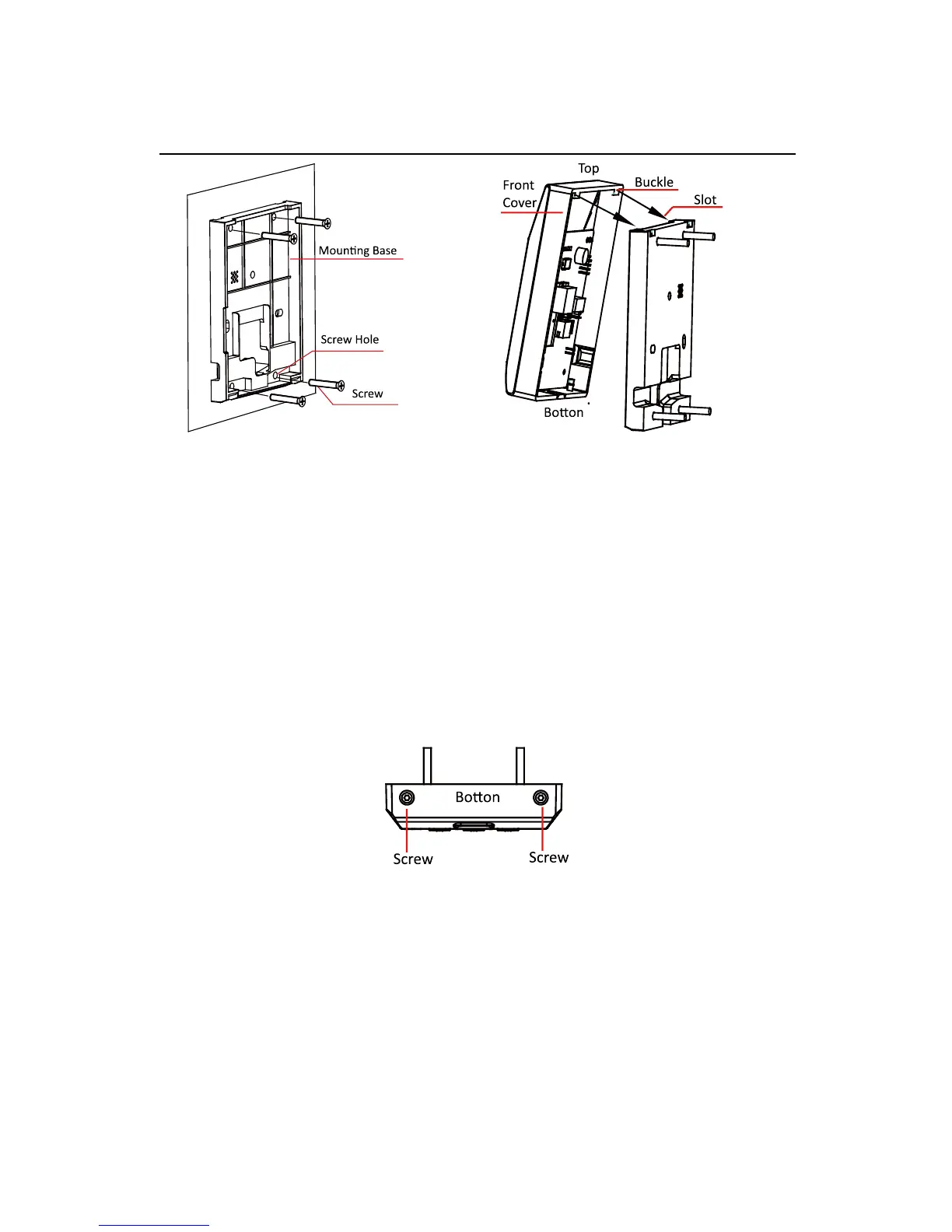

Install the
Figure 4-4
Mounting Base
Attach the Front
Figure 4-5
Cover
5. Connect the corresponded cables.
6. Align the buckle of the front cover with the slot of the
mounting base, and hang the front cover onto the
mounting base. Make sure the buckle is embedded into
the slot.
7. Secure the front cover with inserting and tightening two
screws on the bottom of device.
Secure the Front Cover Figure 4-6
