HIKVISION DS-K2602 - DS-K2604 Terminal Description

DS-K2600 Series Access Controller
16
3.1.3 DS-K2604 Terminal Description

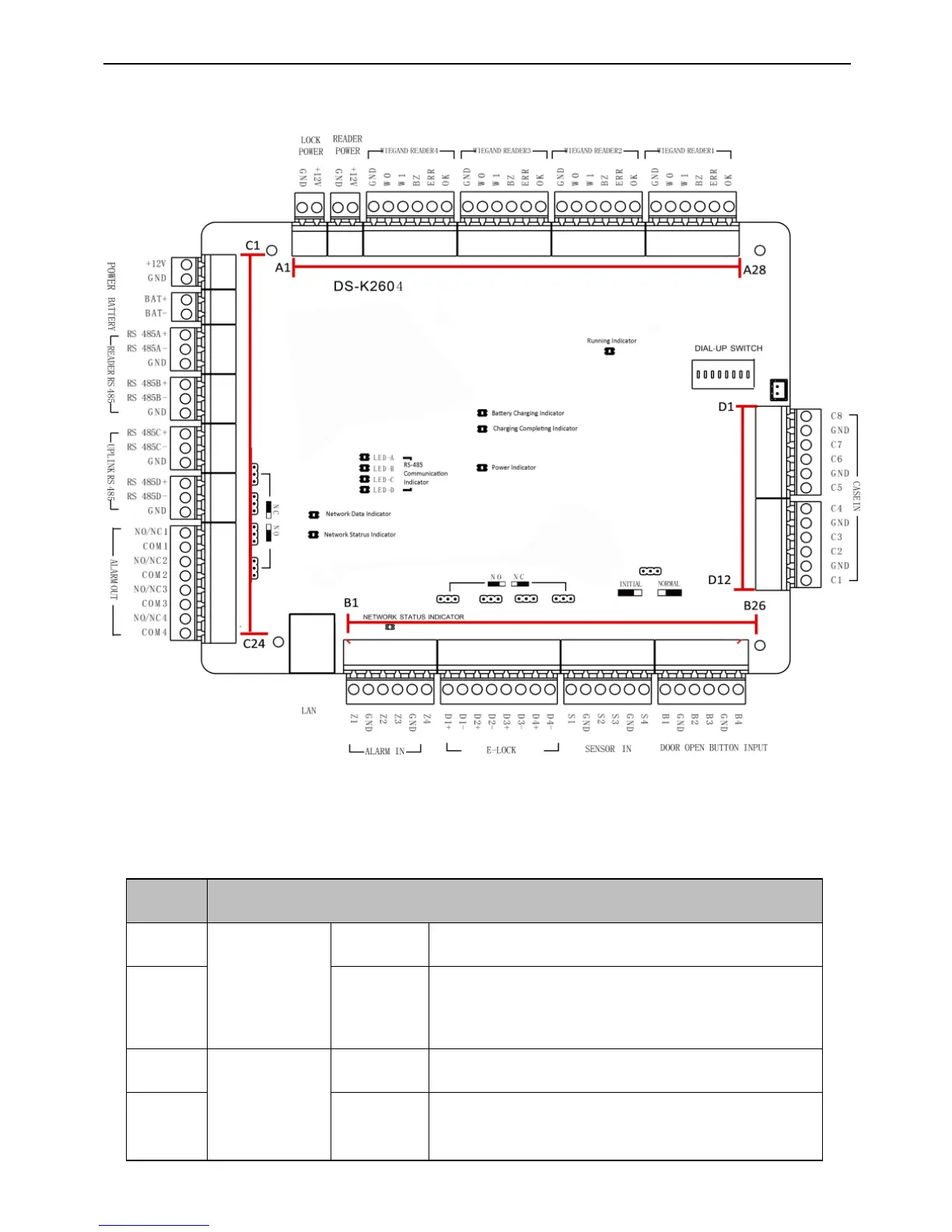

Figure 3-3 DS-K2604 Access Controller Terminals
Table 3-3 DS-K2604 Port Description
No.
DS-K2604
A1
Power
Supply of
E-Lock
GND
Grounding
A2
+12V
Power Supply of E-Lock Output
A3
Power
Supply of
Card Reader
GND
Grounding
A4
+12V
Power Supply of Card Reader Output
