DS-K2600 Series Access Controller
23
4.2 Card Reader Installation
4.2.4 The Connection of Wiegand Card Reader

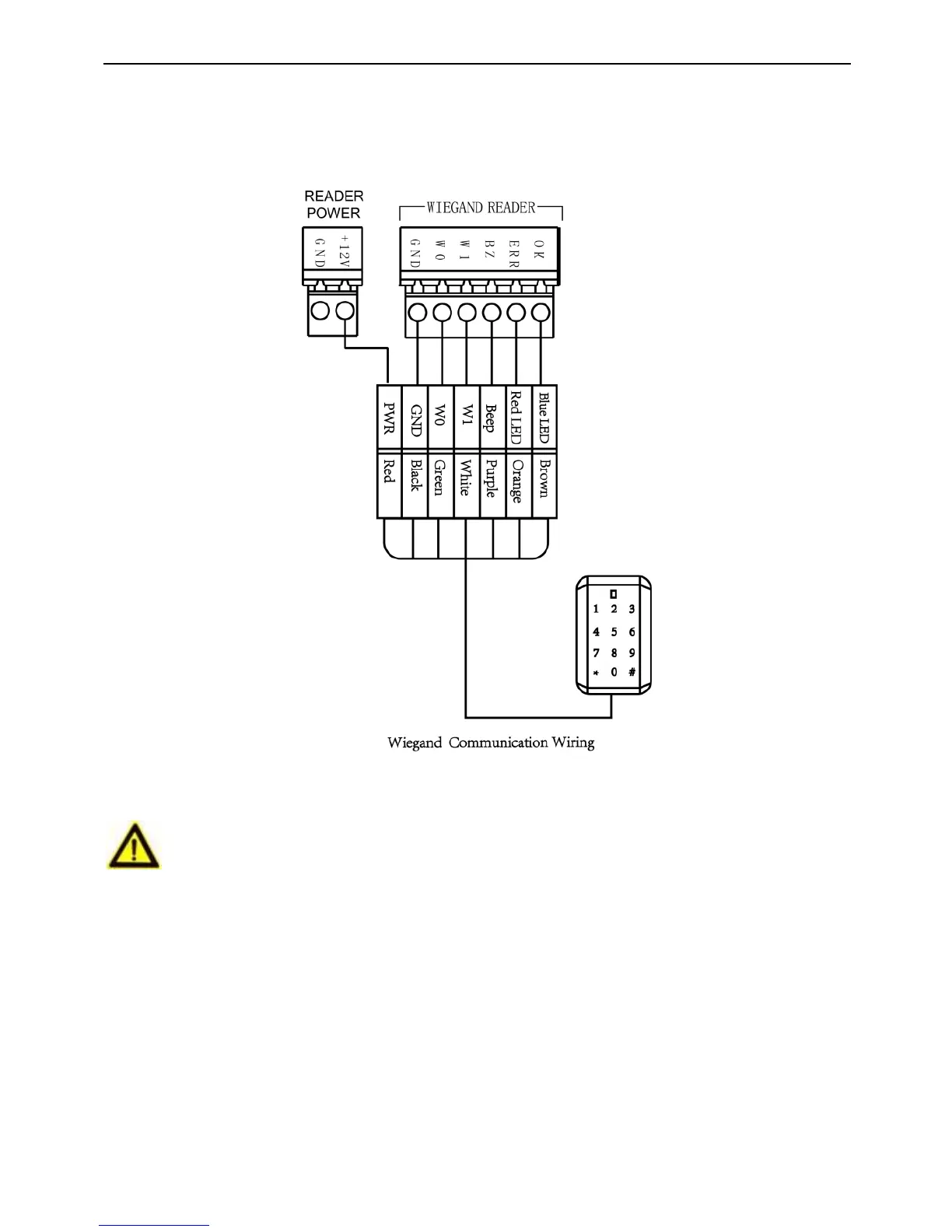

Figure 4-4 Wiring diagram of Wiegand card reader
Note:
You must connect the OK/ERR/BZ, if using access controller to control the LED and
buzzer of the Wiegand card reader.
