HIKVISION DS-K2602 - E-Lock Installation Diagrams

DS-K2600 Series Access Controller
22
4 Card Reader Installation
4.1 External Terminal

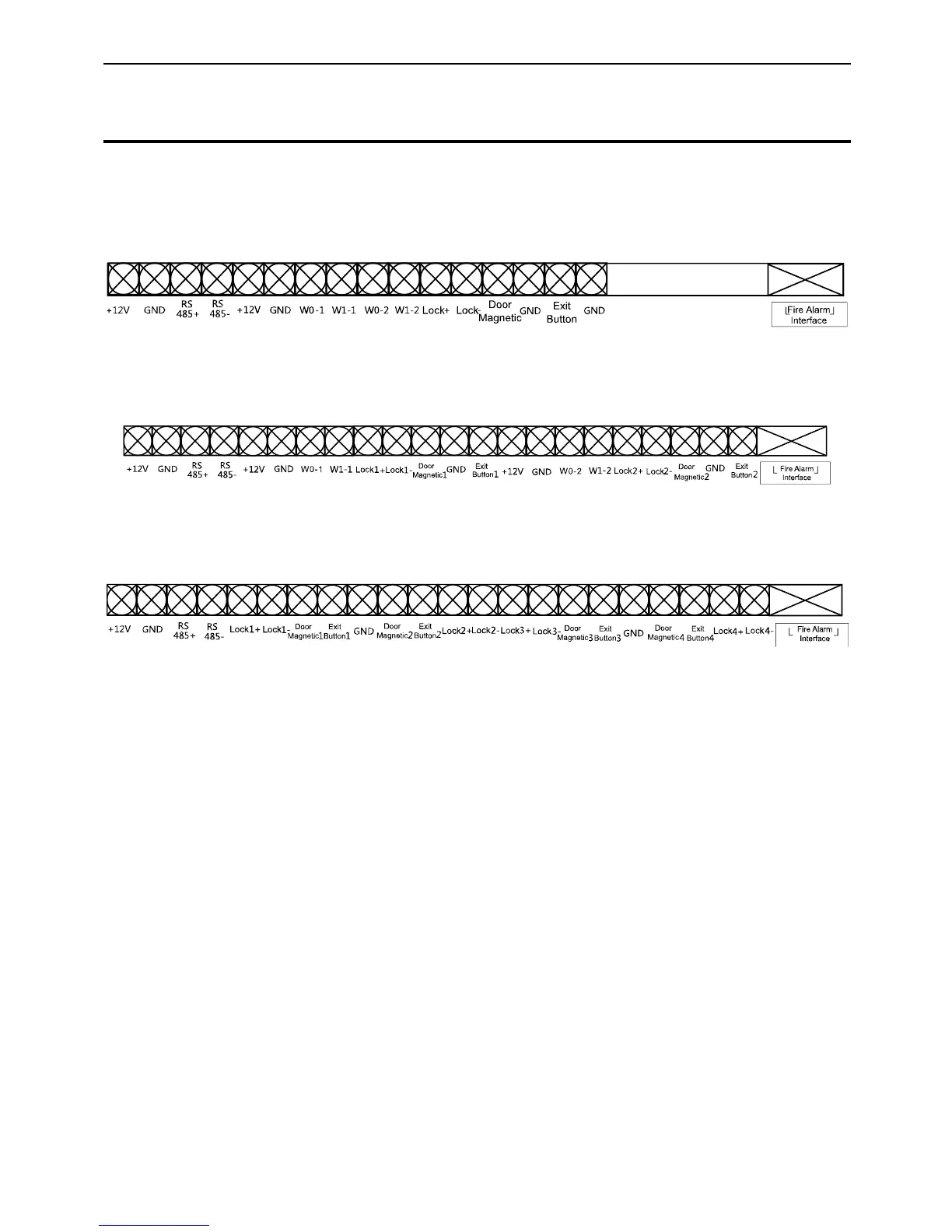

4.1.1 DS-K2601 External Terminals
Figure 4-1 DS-K2601 External Terminals
4.1.2 DS-K2602 External Terminals
Figure 4-2 DS-K2602 External Terminals
4.1.3 DS-K2604 External Terminals
Figure 4-3 DS-K2604 External Terminals
