DS-K2600 Serial Access Controller
20
4.2 Card Reader Installation
4.3 Card Reader Installation
The Connection of Weigand Card Reader

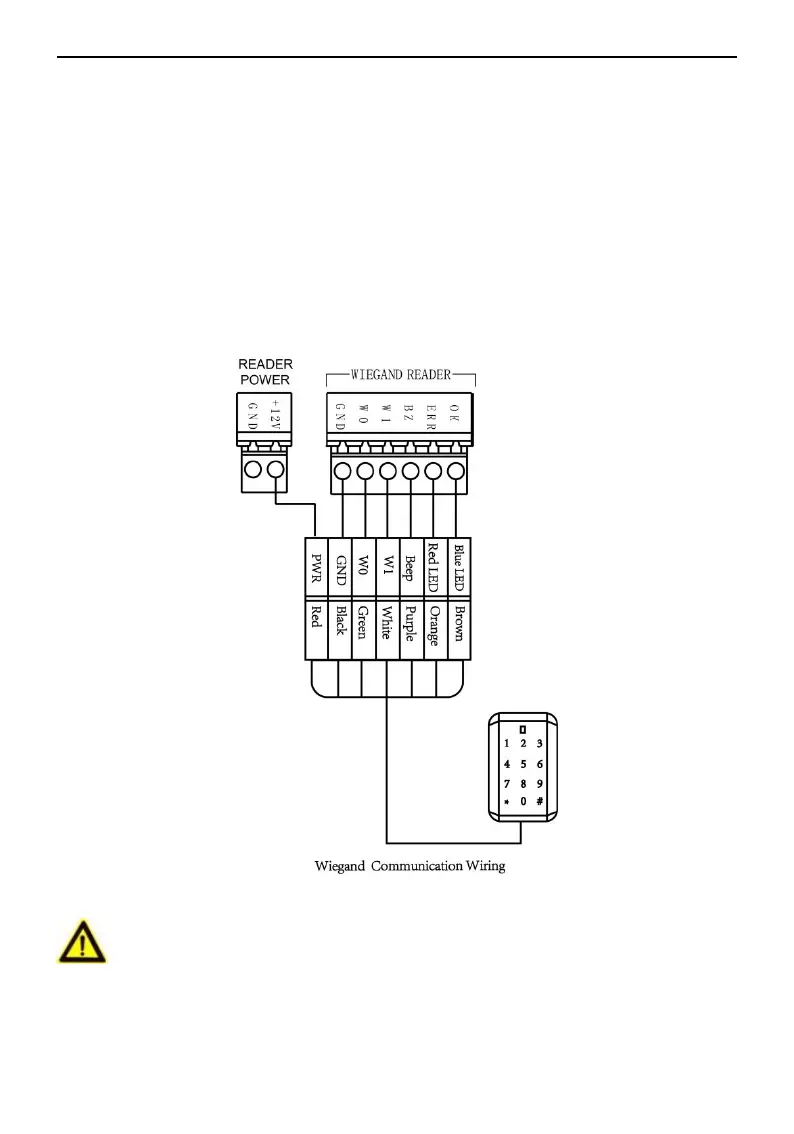

Figure 4-5 Wiring diagram of Wiegand card reader
Note:
You must connect the OK/ERR/BZ, if using access controller to control the LED and
buzzer of the Wiegand card reader.
