3.1.3 DS-K2604 Terminal Description

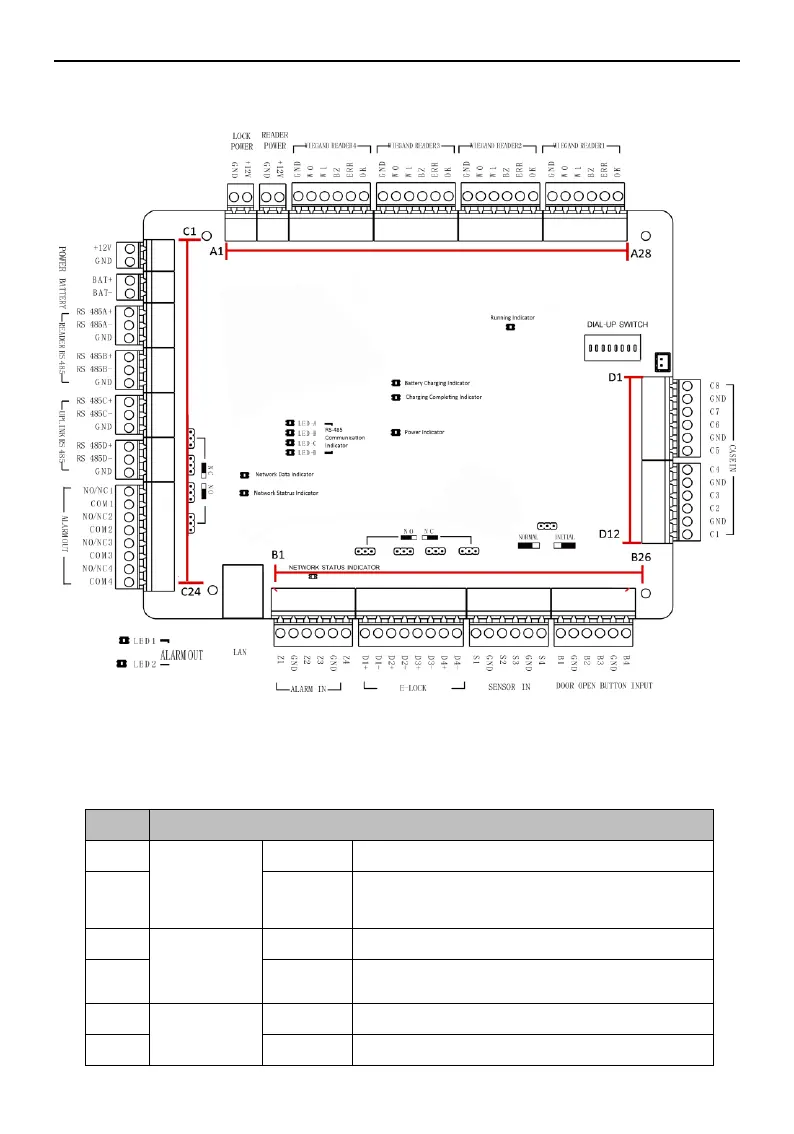

Figure 3-3 DS-K2604 Access Controller Terminals
Table 3-3 DS-K2604 Port Description
No.
DS-K2604
A1
Power
Supply of
E-Lock
GND
Grounding
A2
+12V
Power Supply of E-Lock Output
A3
Power
Supply of
Card Reader
GND
Grounding
A4
+12V
Power Supply of Card Reader Output
A5
Wiegand
Card Reader
GND
Grounding
A6
W0
Wiegand Card Reader Data Input Data0

HIKVISION DS-K2604T Specifications

General

Material	Metal
Product type	Access controller
Certification	CE, FCC, CB
Product color	Gray
Brand compatibility	Hikvision
Operating temperature (T-T)	-20 - 65 °C

Weight and Dimensions

Depth	373 mm
Width	345 mm
Height	98 mm
