HIKVISION DS-KB6003-WIP User Manual

9
2.2 Connect Power Cables
Before You Start
 Make sure you have powered off the main power switch of your home.
 Connect a resistor (included in the box content) to the doorbell if no electrical
chime or mechanical chime is connected.
Steps
1. Loosen the screws on the rear panel of the doorbell, put loops of power cables
(included in the box content) into the screws, and then tighten them.

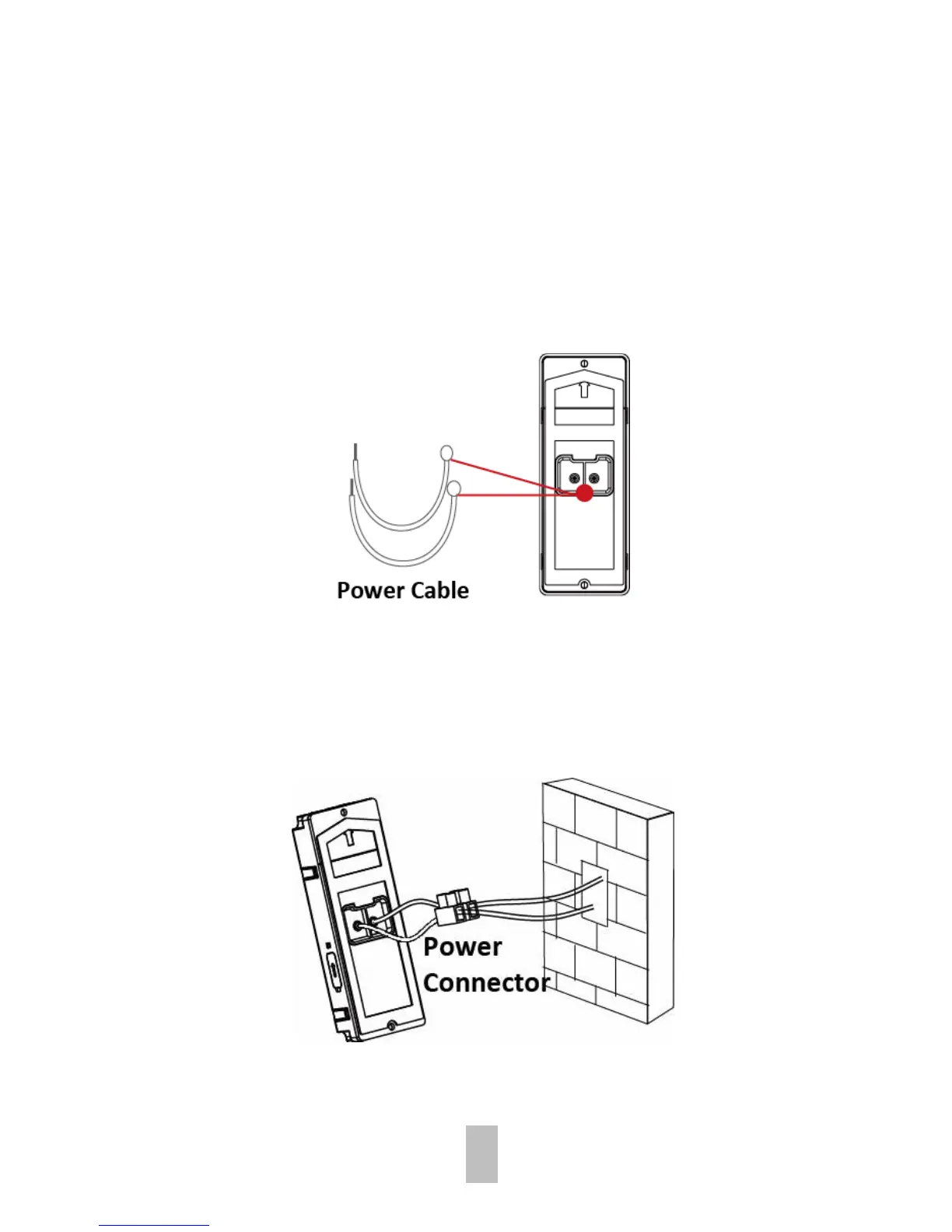

Figure 2-3 Connect Included Power Cables
2. Drill a cable hole on the wall which should be align with the hole on the mounting
template.
3. Pull the power cables from the wall, and connect to the power connector.
4. Connect the power cables on the rear panel of the doorbell to the power connector
(included in the box content).
Figure 2-4 Connect Power Cables
