HIKVISION DS-KD-M User Manual

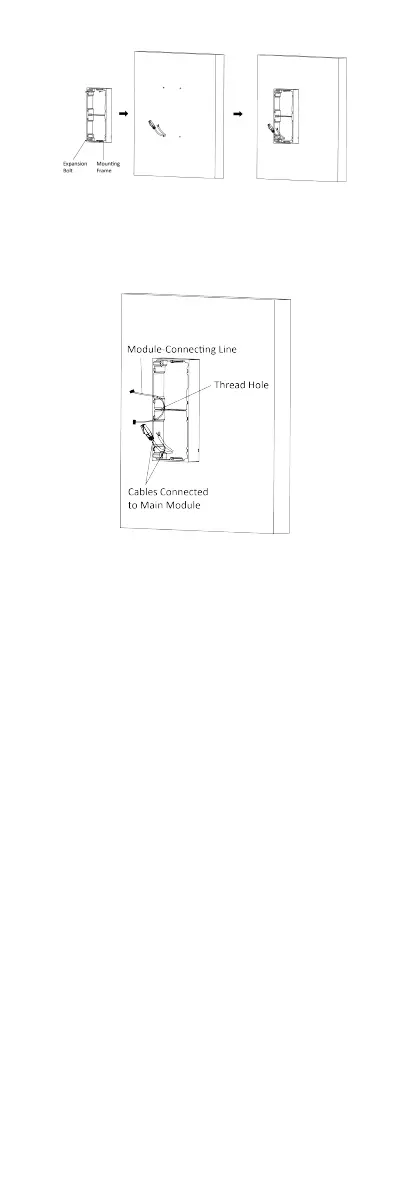

Figure 4-4 Fix the Mounng Frame
5. Thread the
module-connecng line across the thread hole of
the frame. Pass the main unit connecng lines across the
thread hole to the upper grid.
Figure 4-5 Placement of Lines
6. Connect the cables.
1) Connect the lines and module-connecng line to the
corresponding interfaces of the main unit, then place the
main unit into the upper grid.
2) Connect the other end of the
module-connecng line to the
input interface of the sub module.
3) Organize the cable with cable
e in the package. The
suggested cable connecon picture as shown below.
15

HIKVISION DS-KD-M Specifications

General

Product type	Card reader
Mounting type	Surface
Product color	Black
Brand compatibility	Hikvision
International Protection (IP) code	IP65
Package weight	421 g
Quantity per pack	1 pc(s)
Storage temperature (T-T)	10 - 95 °C
Operating temperature (T-T)	-40 - 55 °C
DC input voltage	12 V
Sustainability certificates	REACH, RoHS, WEEE

Weight and Dimensions

Depth	33.7 mm
Width	98.5 mm
Height	100 mm
Weight	160 g
