HIKVISION DS-KD8003-IME1 Manual

Title:
How to connect secure module to door station
Version:
v1.0
Date:
12/25/2020
Product:
Video intercom
Page:
2 of 4
2
Note:
1. When DIP switch is set, the original door lock interface on door station will be disabled
2. Secure module can only be used to replace the original door lock interface, if the second door
is not enabled or door station doesn’t support second door, you cannot turn the second digit up

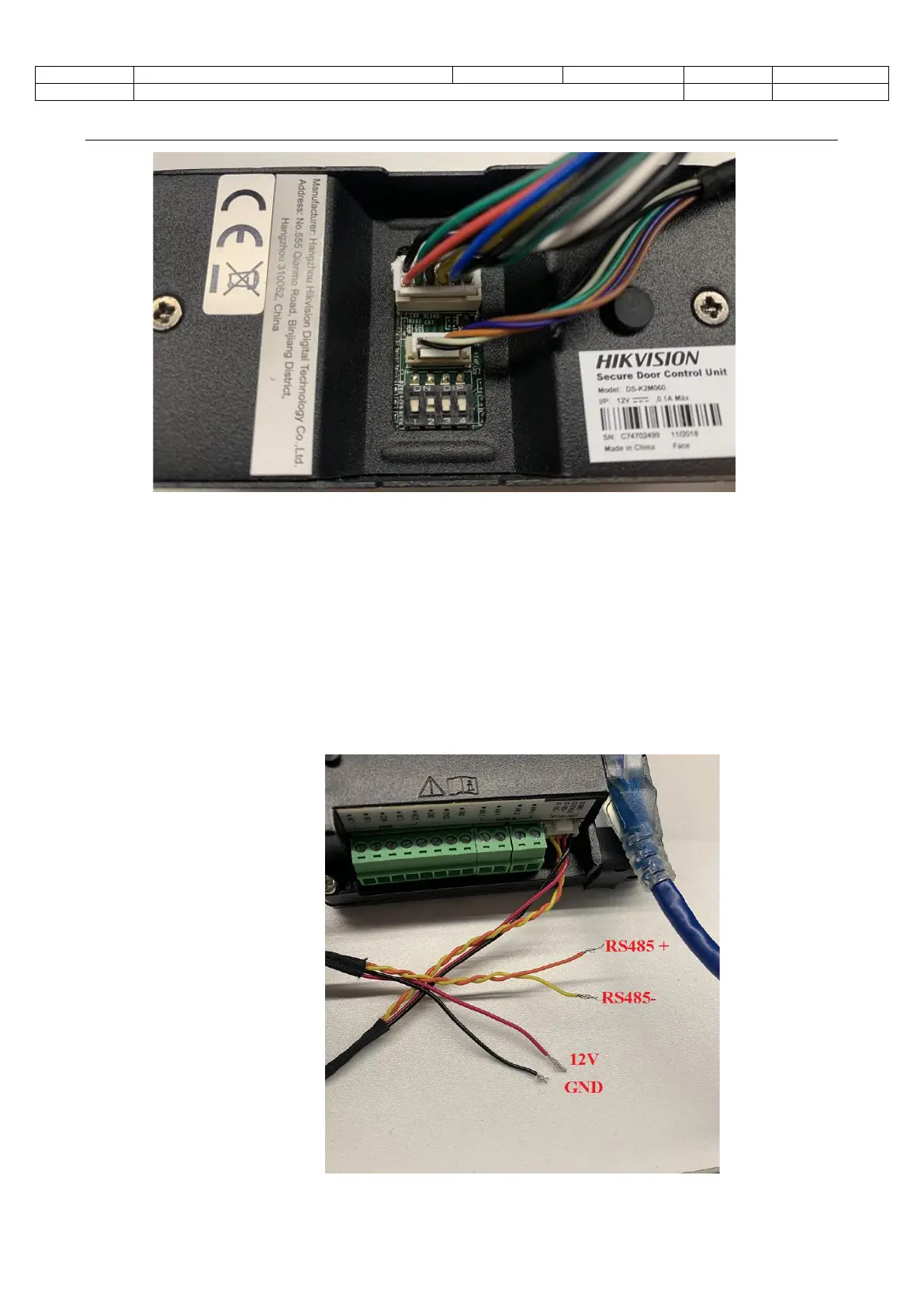

2. Wiring
1) Connect RS485 interface between secure module and door station

HIKVISION DS-KD8003-IME1 Specifications

General

Product color	Black
International Protection (IP) code	IP65
Color	Yes
Relay inputs	2
Video codecs	H.264
Number of buttons	1 buttons
Connectivity technology	Wired
Maximum number of cameras supported	-
Operating system installed	Linux
Megapixel	2 MP
Supported video modes	720p, 1080p
Viewing angle, vertical	96 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	180 °
LED type	IR
Display diagonal	- \
Indoor unit included	No
Voice codecs	G.711u
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
Outdoor unit power type	DC
Power consumption (typical)	10 W

Weight and Dimensions

Depth	98 mm
Width	99.8 mm
Height	43.9 mm
