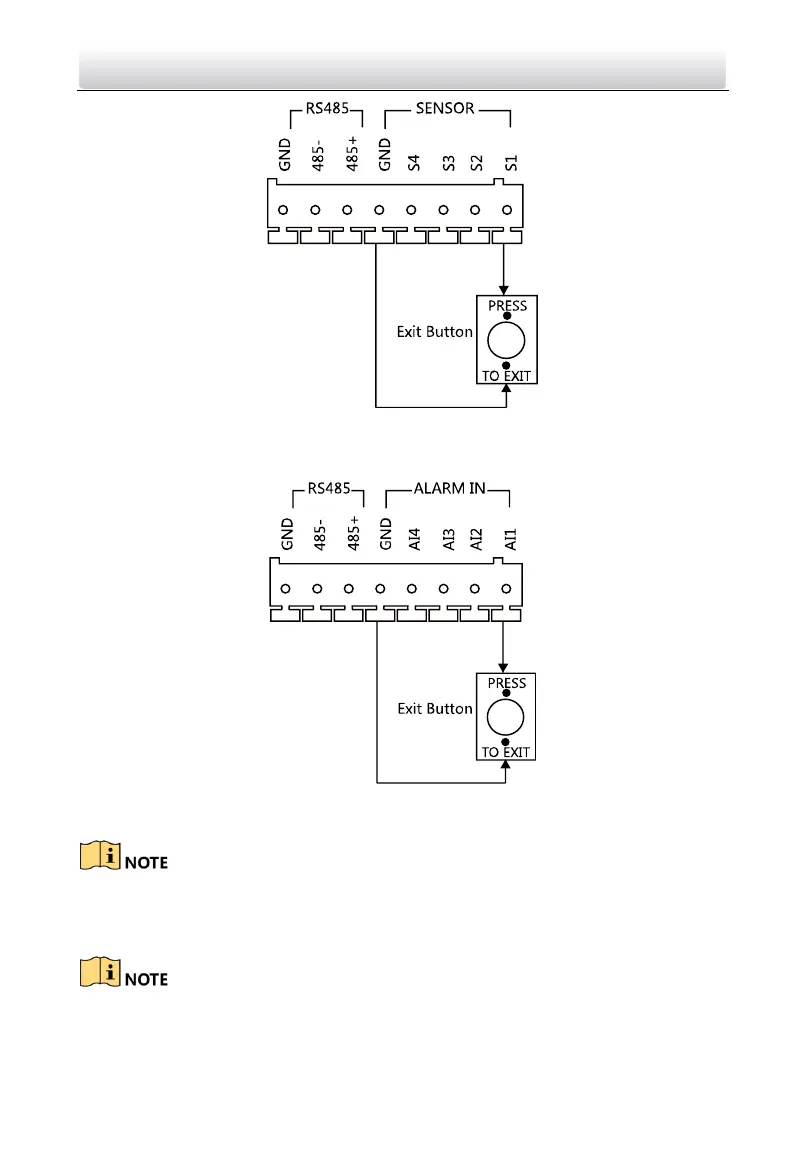

Figure 2-8 Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM (2)
Exit Button Wiring for DS-KD3002-VM
Figure 2-9 Exit Button Wiring for DS-KD3002-VM
Terminal S1 is set as default for connecting exit button.
2.2.4 External Card Reader Wiring
 Please set the DIP switch first before connecting the card reader.
