HIKVISION DS-KH6320-WTE1 User Manual

Video Intercom Demo Case·User Manual
7
3 Video Intercom Function

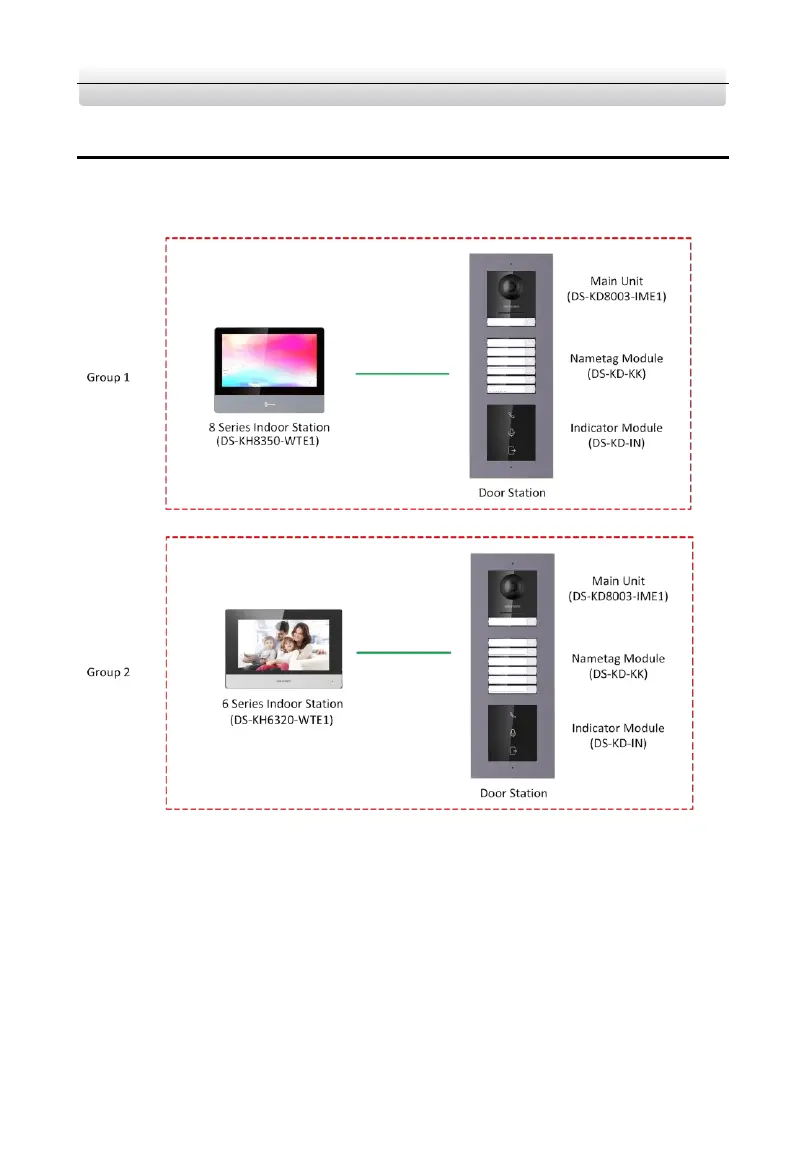

3.1 Video Intercom Function of Group 1 and Group 2
For group 1, there are one 8-series indoor station and module door station.
For group 2, there are one 6-series indoor station and module door station.
Before you begin:
Make sure you have configured the room No. of the device.
Steps:
1. Press the call button on the main unit or on the nametag module to call the indoor
station.
2. The indoor station goes to the call receiving page automatically.

HIKVISION DS-KH6320-WTE1 Specifications

General

Display Size	7 inch
Resolution	1024 × 600
Network Protocols	TCP/IP, SIP, RTSP
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Power Consumption	≤ 6 W
Operation Method	Touchscreen
Audio Compression Standard	G.711 U
Audio Compression Rate	64 Kbps
Wi-Fi Standard	IEEE802.11 b/g/n
Wi-Fi Frequency Range	2.4 GHz
RS-485	1
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Audio	Two-way audio
Power Supply	12 VDC, PoE (IEEE802.3af)
Installation	Wall-mounted
Display Type	TFT LCD
Network Interface	10/100 Mbps Ethernet
Alarm Output	1 channel
TF Card	up to 32 GB
Working Humidity	10% to 90%
