HIKVISION DS-KH6320-WTE1 User Manual

Video Intercom Demo Case·User Manual
1
1 Demo Case Overview
1.1 Devices Overview
The demo case displays 3 groups of indoor station and door station.
See Figure 1-1 for the default calling relationship among these video intercom devices.

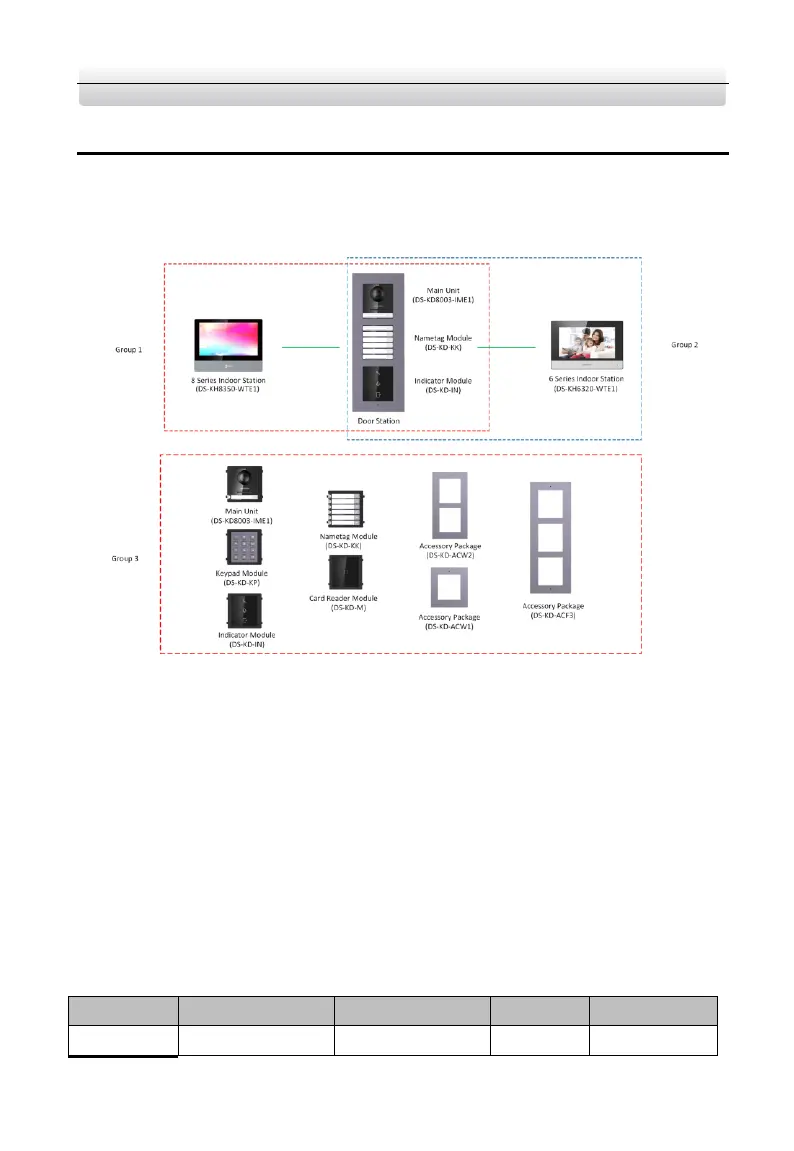

Figure 1-1 Intercom Application Diagram
1.2 Default Parameters
In the demo case, video intercom devices are divided into 3 groups by default.
 The default configuration password for network indoor stations is 888999.
 The default activation password of network video intercom devices in the demo
case is hik12345.
 For DS-KH8350-WTE1 indoor station, the default Microphone volume, Prompt
Sound Volume and Call Volume are 70%.
 For DS-KH6320-WTE1 indoor station, the default Microphone volume, Prompt
Sound Volume and Call Volume are 70%.
Refer to Table 1-1 to see the default parameters for each device.
Table 1-1 Device Information
Group No.
Device Type
Device Model
IP
Room No.
1
Indoor Station
DS-KH8350-WTE1
192.0.0.65
1

HIKVISION DS-KH6320-WTE1 Specifications

General

Display Size	7 inch
Resolution	1024 × 600
Network Protocols	TCP/IP, SIP, RTSP
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Power Consumption	≤ 6 W
Operation Method	Touchscreen
Audio Compression Standard	G.711 U
Audio Compression Rate	64 Kbps
Wi-Fi Standard	IEEE802.11 b/g/n
Wi-Fi Frequency Range	2.4 GHz
RS-485	1
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Audio	Two-way audio
Power Supply	12 VDC, PoE (IEEE802.3af)
Installation	Wall-mounted
Display Type	TFT LCD
Network Interface	10/100 Mbps Ethernet
Alarm Output	1 channel
TF Card	up to 32 GB
Working Humidity	10% to 90%
