HIKVISION DS-KH6320-WTE1 User Manual

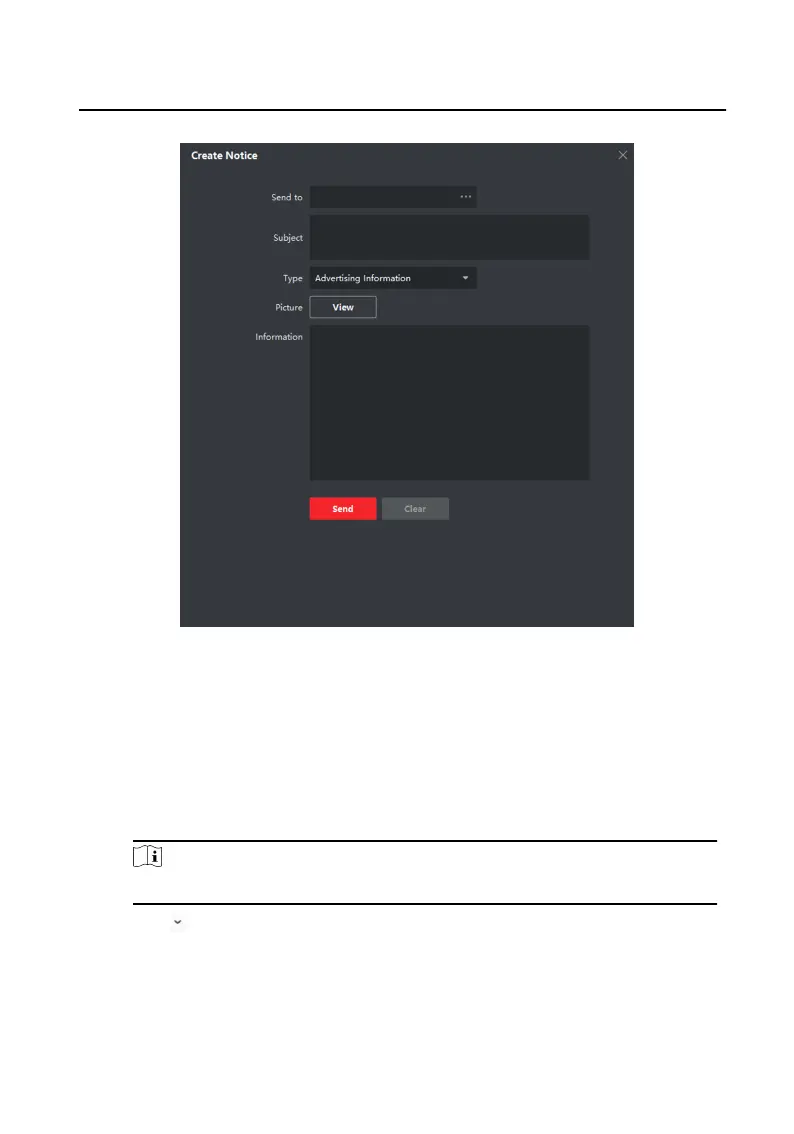

Figure 3-5 Create a Noce
4. Edit the noce on the right panel.
1) Click ... on the Send To eld to pop up the Select Resident dialog.
2) Check the checkbox(es) to select the resident(s). Or you can check the All
checkbox to select all the added residents.
3) Click OK to save the selecon.
4) Enter the subject on the Subject eld.
Note
Up to 63 characters are allowed in the Subject eld.
5)
Click
in the Type eld to unfold the drop-down list and select the noce type.
6)
Oponal: Click View to add a local picture to the noce.
Network Indoor
Staon Operaon Guide
16

HIKVISION DS-KH6320-WTE1 Specifications

General

Display Size	7 inch
Resolution	1024 × 600
Network Protocols	TCP/IP, SIP, RTSP
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Power Consumption	≤ 6 W
Operation Method	Touchscreen
Audio Compression Standard	G.711 U
Audio Compression Rate	64 Kbps
Wi-Fi Standard	IEEE802.11 b/g/n
Wi-Fi Frequency Range	2.4 GHz
RS-485	1
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Audio	Two-way audio
Power Supply	12 VDC, PoE (IEEE802.3af)
Installation	Wall-mounted
Display Type	TFT LCD
Network Interface	10/100 Mbps Ethernet
Alarm Output	1 channel
TF Card	up to 32 GB
Working Humidity	10% to 90%
