HIKVISION DS-KH8301-WT User Manual

Video Intercom Indoor Station·User Manual
92
 Indoor extension only supports alarm log and capture log.
 For DS-KH8501-WT/DS-KH8500-T/DS-KH8301-WT/DS-KH8300-T models, it requires TF
card for saving visitor messages and capture logs of the indoor stations.
 For DS-KH6310/DS-KH6310-W/DS-KH6310-W(L)/DS-KH6210(L) models, it is the
internal memory of the indoor station that saves the visitor messages and capture
logs.
 Hold down the item to delete or clear all items on each interface.
 On the alarm log interface (indoor station), hold down the piece of the alarm log to
open the alarm details interface.
10.6 Live View
 Make sure the IP camera or door station is well-connected.
 Make sure the indoor extension and the indoor station are well-connected.
 The DS-KH6201(L) indoor station does not support the live view of IP camera.
Purpose:
On the live view interface, you can monitor the live view of added door station and IP
camera.
Steps:
1. Press the Live View tab on the user interface to enter the live view interface.

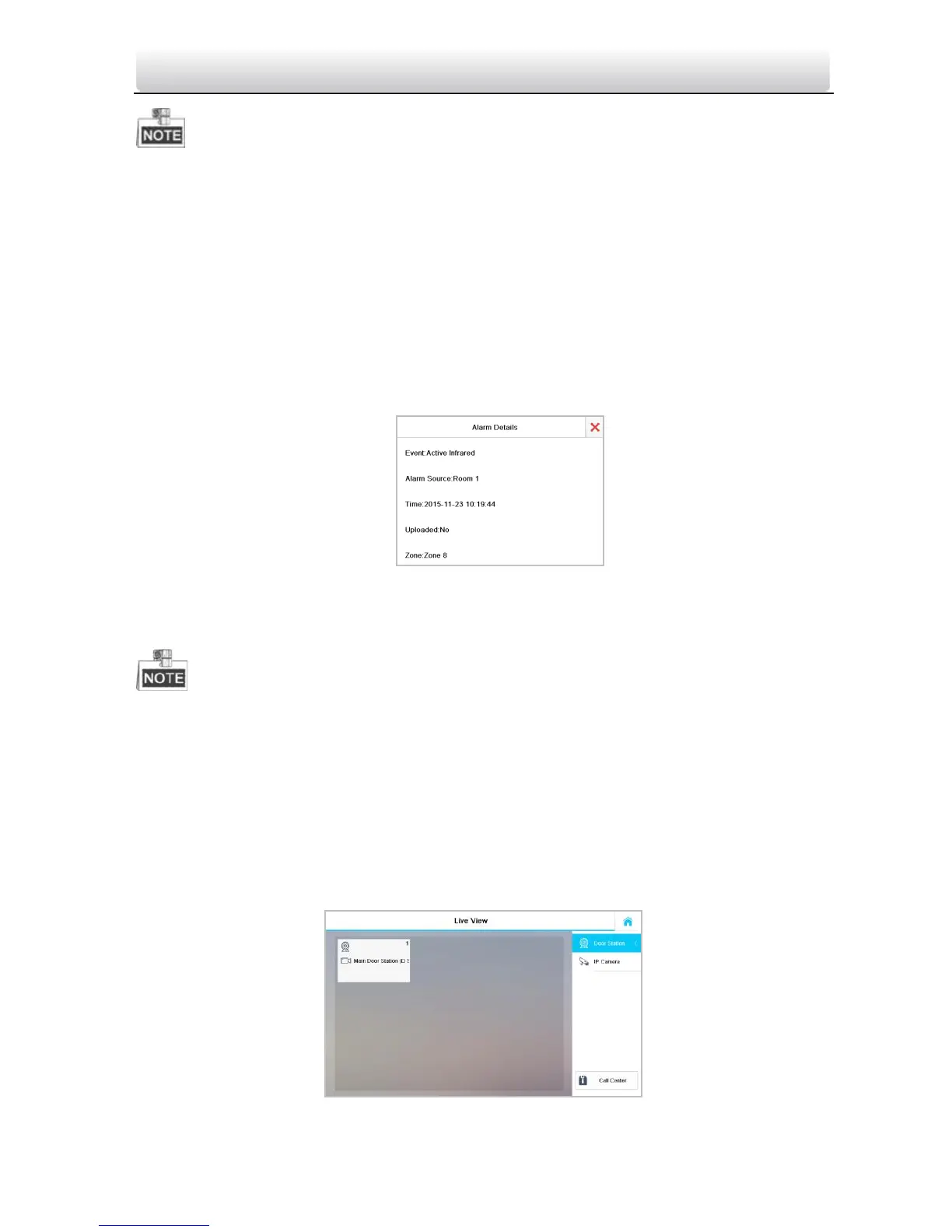

Figure 9-40 Live View Interface

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
