Video Intercom Indoor Station·User Manual
30
7. Click the Set button to accomplish the settings of indoor station.

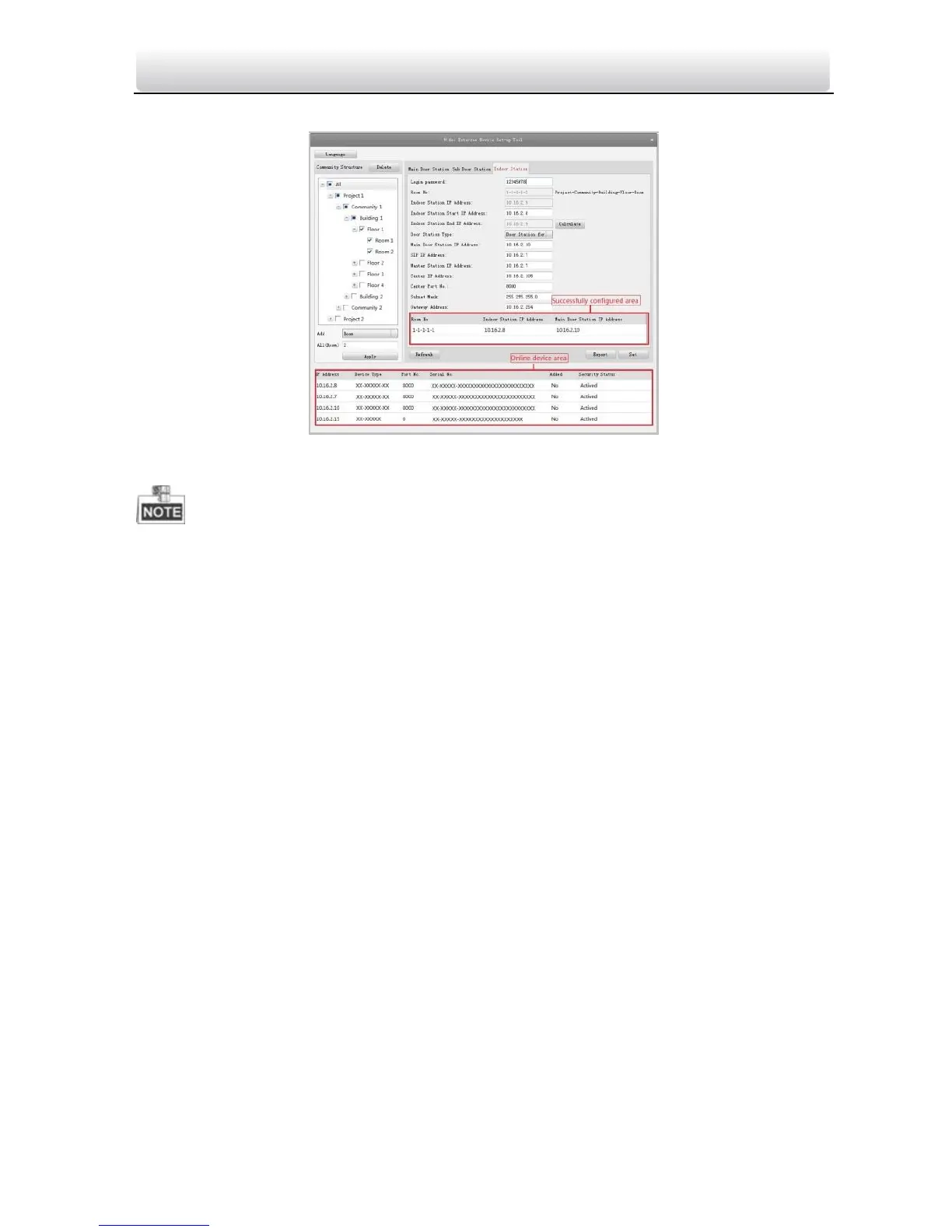

Figure 7-8 Indoor Station Settings Interface
 You can select one project or multiple projects; one community or multiple
communities; one building or multiple buildings.
 The Indoor Station IP Address is usually set to be the same as Start IP Address of
indoor station.
 Once the indoor station has been successfully configured, the indoor station
information will be listed in the successfully-configured area, and the room number
and the indoor station IP address will automatically switch to the next one. Thus, the
next indoor station can be easily configured only by clicking the Set button.
 If the indoor station is not activated, create a login password and enter it in the
textbox to activate the device.
 If the indoor station is not activated, the device is configured and activated
simultaneously by clicking the Set button.
 The Indoor Station IP Address is usually set to be the same as Start IP Address of
indoor station.
 When the device is successfully configured, it prompts the note: Configuring indoor
station parameters succeeded.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
