HIKVISION DS-KH8301-WT User Manual

Video Intercom Indoor Station·User Manual
38
You can operate the system management and remote upgrading on the system
maintenance interface.
Steps:
1. Click the System Maintenance button to enter the system maintenance interface.
2. Select System Management or Remote Upgrade.
 System Management
• Reboot
1) Click the Reboot button to pop up the reboot dialog box.

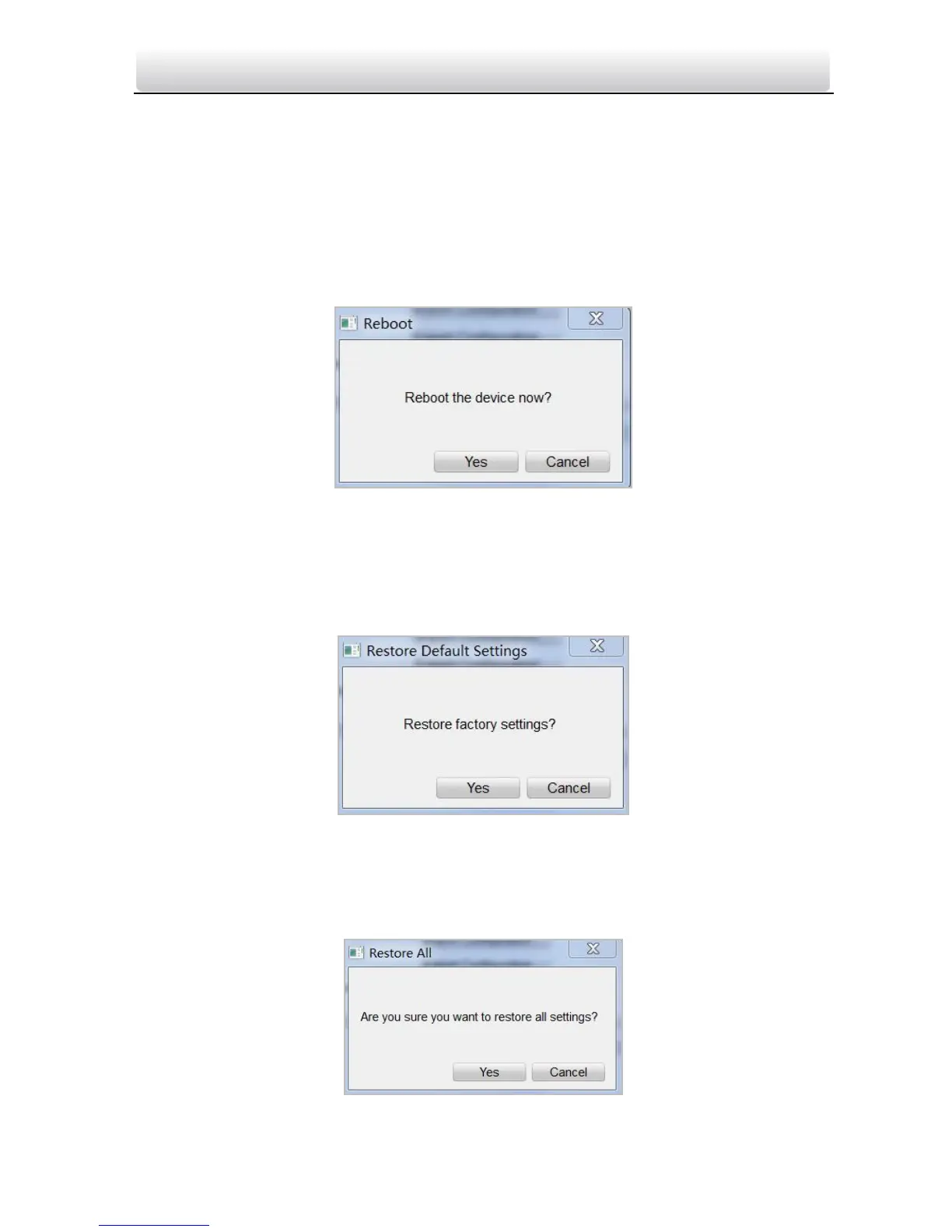

Figure 8-15 Reboot
2) Click the Yes button to reboot the system.
• Restore Default Settings
1) Click the Restore Default Settings button to pop up the restore default
settings dialog box.
Figure 8-16 Restore Default Settings
2) Click the Yes button to restore the default parameters.
• Restore All
1) Click the Restore All button to pop up the restore all settings dialog box.
Figure 8-17 Restore All Settings

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
