 The DS-KH6201(L) indoor station does not support adding IP camera, DVR/DVS/NVR,
or doorphone.
 Connecting Main Door Station
Steps:
1. Press the Settings tab on the touch screen.
2. Press the Configuration tab and enter the admin password (configuration password).
3. Press the Device tab to enter the device management interface.
4. Press the Main Door Station tab to pop up the device information dialogue box.

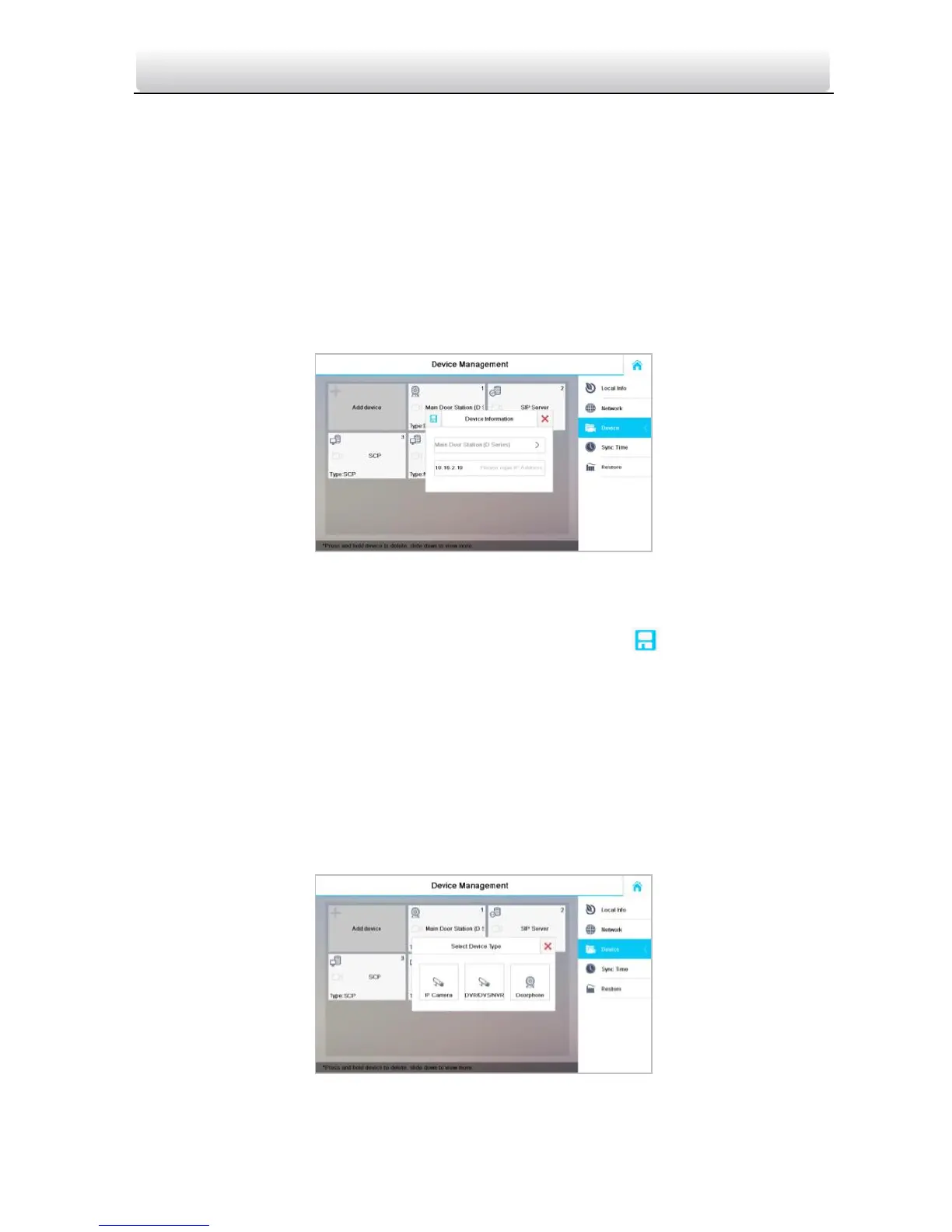

Figure 9-20 Main Door Station Adding Interface (Indoor Station)
5. Select the main door station type: D Series, or V Series.
6. Enter the IP address of the main door station, and press the tab to save the
settings.
 Adding IP Camera/DVR/DVS/NVR/Doorphone
Steps:
1. Press the Settings tab on the touch screen.
2. Press the Configuration tab and enter the admin password (configuration password).
3. Press the Device tab to enter the device management interface.
4. Press the Add Device tab.
Figure 9-21 Device Selecting Interface (Indoor Station)

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
