HIKVISION DS-KIS603-P User Manual

Video Intercom Villa Door Station User Manual
35

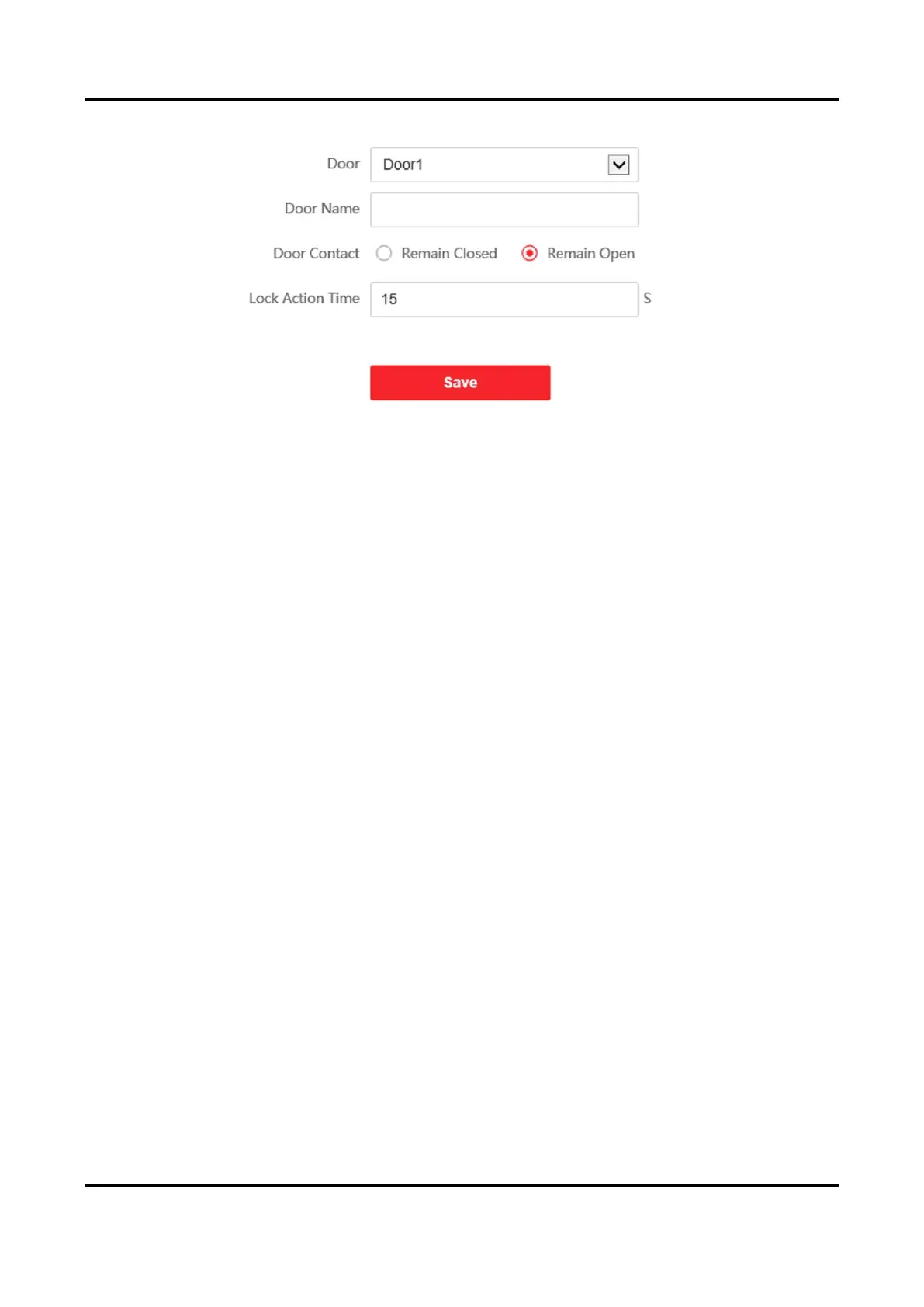

Figure 5-17 Door Parameters
2. Select the door and edit the door name.
3. Set door contact status.
4. Set lock action time.
5. Click Save to enable the settings.
Card Security
Go to Access Control → Card Security to enter the settings page.
Slide to enable card encryption parameters and CPU card reading content. Click Save to enable the
settings.
Elevator Control
Before You Start
● Make sure your door station is in the mode of main door station. Only the main door station
support elevator control function.
● Make sure your door station has been connected to the elevator controller via RS-485 wire if
you want to use RS-485 interface.
Steps
1. Click Access Control → Elevator Control to enter the corresponding configuration page.

HIKVISION DS-KIS603-P Specifications

General

Model	DS-KIS603-P
Category	Intercom System
Resolution	1024 x 600
Camera	2 MP HD Camera
Audio Input	Built-in Omnidirectional Microphone
Audio Output	Built-in Loudspeaker
Operating Temperature	-10°C to 55°C (14°F to 131°F)
Supported Protocols	TCP/IP, SIP, RTSP
Display	7-inch TFT LCD
Network Protocol	TCP/IP
Power Supply	12 VDC
Installation	Surface Mount
IR Supplement	IR Supplement
Protection Level	IP65
Power Consumption	<10 W
Humidity	10% - 90% (non-condensing)
Communication Interface	Ethernet
