HIKVISION DS-KIS603-P User Manual

Video Intercom Villa Door Station User Manual
36

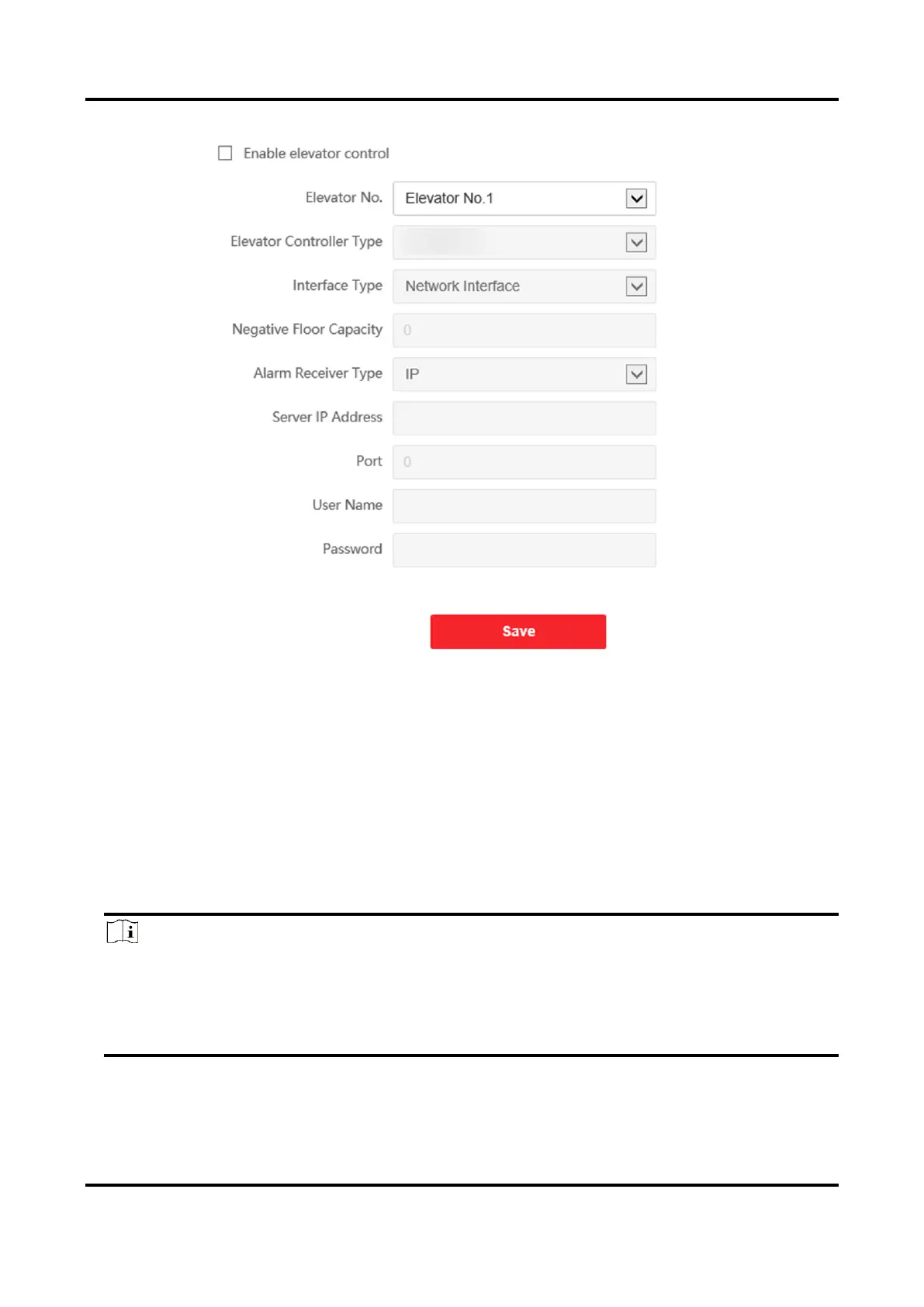

Figure 5-18 Elevator Control
2. Check to enable elevator control function.
3. Select an Elevator No., and select an elevator controller type for the elevator.
4. Set the Negative Floor.
5. Select the Interface Type as RS-485 or Network Interface. And enable the elevator control.
– If you select RS-485, make sure you have connected the door station to the elevator
controller with RS-485 wire.
– If you select Network interface, enter the elevator controller's IP address, port No., user
name, and password.
6. Click Save to enable the settings.
Note
● Up to 4 elevator controllers can be connected to one door station.
● Up to 10 negative floors can be added.
● Make sure the interface types of elevator controllers, which are connected to the same door
station are consistent.

HIKVISION DS-KIS603-P Specifications

General

Model	DS-KIS603-P
Category	Intercom System
Resolution	1024 x 600
Camera	2 MP HD Camera
Audio Input	Built-in Omnidirectional Microphone
Audio Output	Built-in Loudspeaker
Operating Temperature	-10°C to 55°C (14°F to 131°F)
Supported Protocols	TCP/IP, SIP, RTSP
Display	7-inch TFT LCD
Network Protocol	TCP/IP
Power Supply	12 VDC
Installation	Surface Mount
IR Supplement	IR Supplement
Protection Level	IP65
Power Consumption	<10 W
Humidity	10% - 90% (non-condensing)
Communication Interface	Ethernet
