HIKVISION DS-KV6113-PE1

Video Intercom Villa Door Station User Manual
10

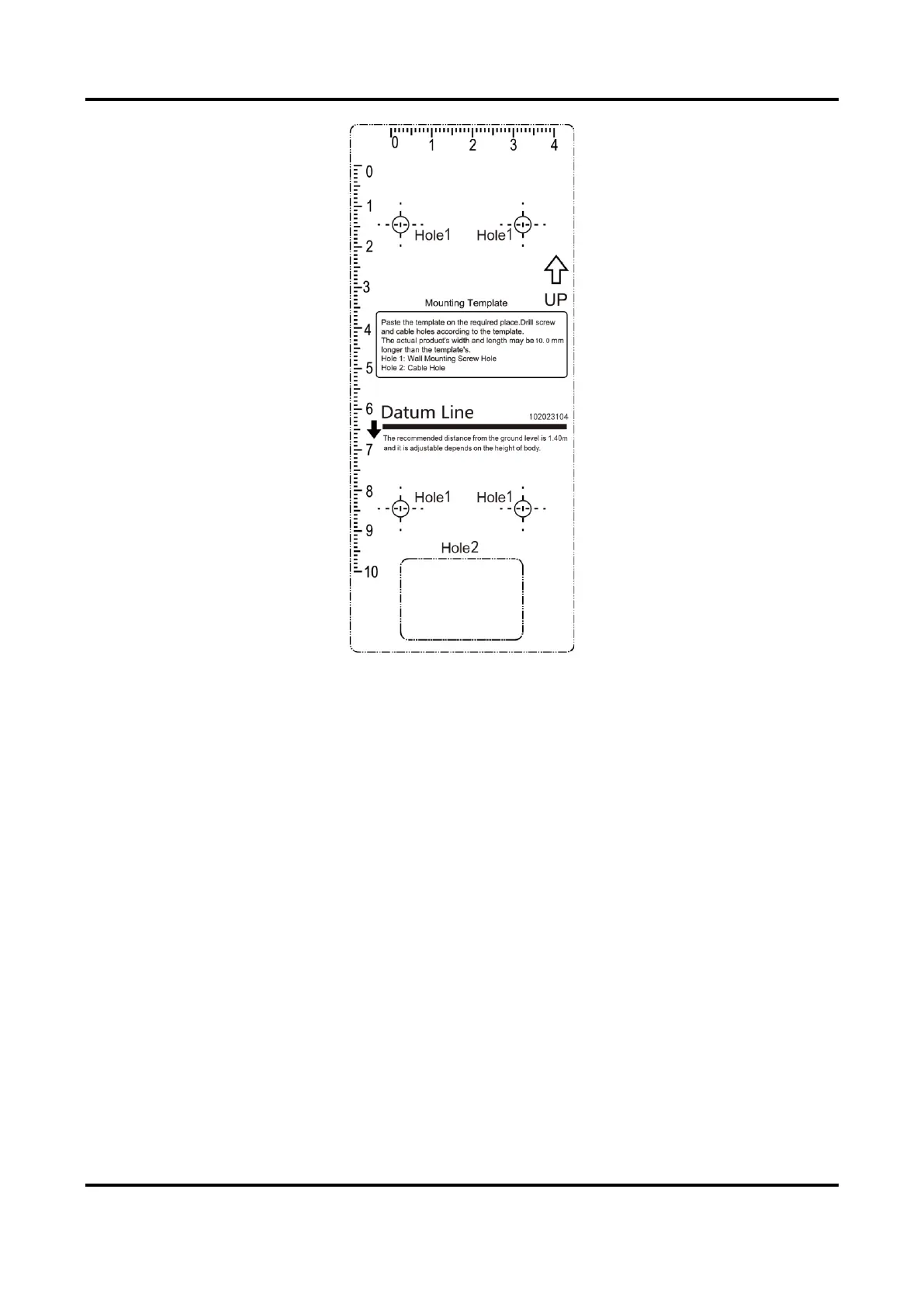

Figure 3-4 Mounting Template
2. Align the protective shield with the mounting template.
3. Secure the mounting plate and protective shield on the wall with 4 supplied screws according to
the screw holes.
4. Install the villa door station to the mounting plate. Fix the device on the mounting plate with the
set screw.
